Which Container Lashing Fittings Ensure Reliable Container Securing?

Why Does Container Securing Depend on the Right Fittings?

Containers carried on ships are exposed to acceleration, vibration, vessel movement, wind and changing sea conditions. A securing system therefore has to control movement in several directions rather than simply prevent a container from sliding sideways. International terminology distinguishes container securing fittings from lashing fittings: securing fittings are used to control longitudinal, transverse and vertical movement, while lashing fittings are specifically used to lash containers to a deck or hatch cover.

This distinction matters when purchasing equipment. A component may look suitable for a container application while being designed for a different connection point, loading direction or securing arrangement. ISO terminology, for example, identifies twistlocks, lashing rods, bridge fittings, D-rings, lashing plates and turnbuckles as different components within container securing systems.

For shipowners, shipyards, terminal operators, marine equipment distributors and rigging suppliers, the purchasing challenge is often not finding a component but identifying the correct specification. An incorrect thread, rod length, end fitting, locking direction or working load can make otherwise well-manufactured hardware unsuitable for the intended system.

How Does a Container Lashing System Work?

A container lashing system creates controlled mechanical connections between containers and the vessel or between adjacent containers. Depending on the vessel design and stack arrangement, different components are combined to control vertical, transverse and longitudinal movement.

A typical arrangement may use twistlocks between container corner castings, while lashing rods and turnbuckles provide additional tension from the upper container corners toward deck foundations or lashing bridges. Bridge fittings can connect adjacent container corners, while stacking cones and other fixed fittings help locate and stabilize containers.

ISO 3874 describes lashing rods as rods that fit into container corner fittings and connect to a tensioning device such as a turnbuckle. It also distinguishes different rod-end configurations and notes that rods intended for different securing systems are not necessarily interchangeable.

What Are the Main Container Lashing Fittings?

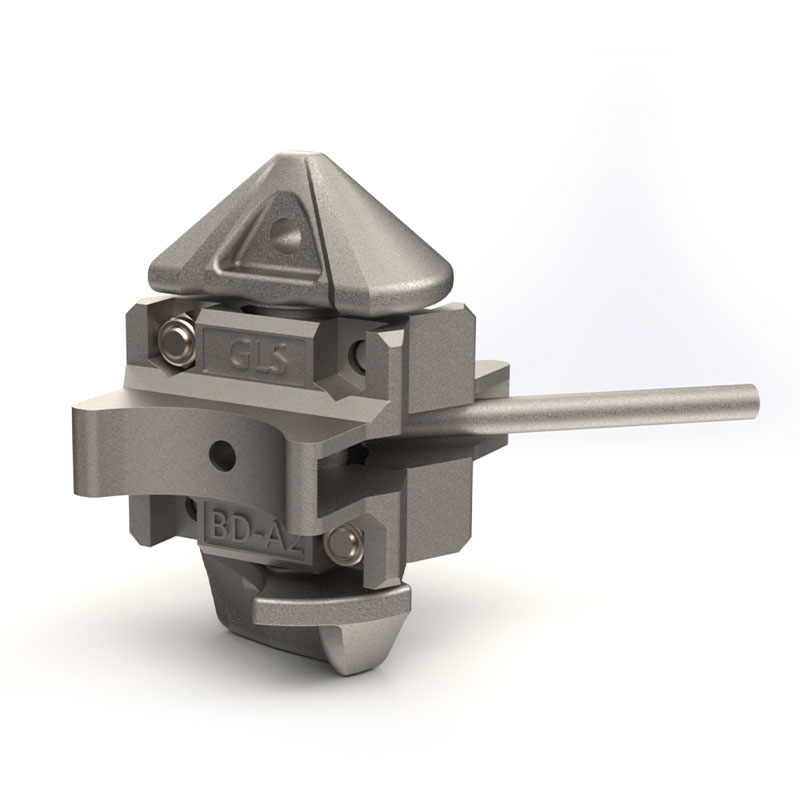

Twistlocks for Vertical Container Connection

Twistlocks are among the most recognizable container securing components. They engage with the standardized corner fittings of containers and lock containers together or connect them to fixed fittings. Depending on the application, manual, semi-automatic and fully automatic designs may be used.

The important purchasing point is not simply whether a twistlock fits the container. Buyers should confirm the operating mechanism, locking direction, dimensions, material, strength requirements and compatibility with the specific container securing system.

Lashing Rods for Tension and Restraint

Lashing rods transfer tensile forces from container corner fittings toward the vessel's tensioning system. Rod length, diameter, end configuration and knob arrangement all affect compatibility. Some systems use short rods for lower container tiers, while longer rods are required for higher stacks.

Rod length should not be selected solely from the container height. The complete geometry—including the location of the deck foundation, lashing bridge, corner casting and turnbuckle—needs to be considered. Guidance from the IMO also emphasizes practical handling, sufficient reach for high-cube containers and minimizing unnecessary weight while maintaining mechanical strength.

Turnbuckles for Controlled Tension

A turnbuckle connects the lashing rod with an anchoring point and allows the operator to adjust the length and tension of the assembly. Different end configurations are available for different lashing rods and anchor points.

Matching the turnbuckle to the rod is critical. Thread dimensions, end fittings, operating clearance and rated strength should be checked as a complete assembly rather than treated as independent specifications.

Bridge Fittings and Stacking Components

Bridge fittings connect neighboring container corners and can help maintain the relationship between adjacent containers in a stack. Stacking cones and related fittings assist with alignment and positioning between container tiers.

These components are particularly important when the securing arrangement relies on a combination of vertical interconnection and lateral restraint. The appropriate configuration depends on the vessel and the cargo securing plan rather than a universal product combination.

Deck Foundations, Lashing Plates and D-Rings

Fixed fittings create the structural connection between loose lashing equipment and the vessel. D-rings, lashing plates, lashing sockets and deck foundations are examples of components used as anchoring points.

Because these fittings transfer forces into the vessel structure, their installation and structural suitability should be considered together with the vessel's engineering requirements. Wärtsilä's marine terminology similarly distinguishes fixed fittings integrated into the hull or deck structure from loose fittings such as twistlocks, bridge fittings, lashing rods and turnbuckles.

How Should Container Lashing Fittings Be Selected?

The most reliable purchasing process begins with the securing application rather than the product name. Instead of asking only for “container lashing hardware,” provide the supplier with the actual operating information.

1. Identify the container configuration. Specify container type, dimensions and whether standard or high-cube containers are involved.
2. Identify the securing position. State whether the fitting is used between containers, from container to deck, on a lashing bridge or at another fixed location.
3. Confirm the required component. Distinguish between twistlocks, rods, turnbuckles, bridge fittings, cones and fixed foundations.
4. Provide dimensions. Rod length, diameter, knob pitch, thread details and end fitting geometry may all affect compatibility.
5. Confirm strength requirements. Ask for the applicable rated load, proof load, breaking load or other required performance data.
6. Check certification requirements. If the vessel, shipyard or project requires classification approval or specific documentation, state this before quotation.
7. Confirm quantity and matching components. A rod without the correct turnbuckle or an anchor without a compatible connection can create procurement delays.

How Do Load Capacity and Compatibility Affect Safety?

Strength should be evaluated across the complete securing path. A high-strength lashing rod cannot compensate for an unsuitable turnbuckle, weak anchor point or incompatible corner connection. The effective capacity of a system is influenced by the weakest relevant component and by how the load is introduced into the structure.

It is also important to distinguish between different load terms. Breaking load, proof load, safe working load and other rated values are not interchangeable. Buyers should use the terminology and values specified by the applicable design documentation, manufacturer data and vessel securing arrangement.

ISO 23577 identifies a twistlock as a structural securing component capable of bearing longitudinal, transverse and vertical forces, while a lashing rod is used to resist container distortion and improve stack stability. This illustrates why individual fittings should be considered according to their actual mechanical role rather than by appearance alone.

What Should Buyers Check Before Installation and Use?

Correct operation is as important as correct procurement. Even a properly manufactured fitting can perform poorly if it is installed incorrectly, paired with an incompatible component or used after excessive wear.

Check the Connection

Before use, verify that hooks, knobs, pins, threads and locking mechanisms are fully engaged. For twistlocks, the locking position should be clearly confirmed according to the applicable operating procedure.

Check for Deformation and Damage

Inspect rods for bending, cracks, excessive corrosion or damaged end fittings. Turnbuckles should be checked for damaged threads, deformation and abnormal movement. Twistlocks should be inspected for worn locking heads, damaged handles or mechanisms that do not operate correctly.

Check the System Rather Than One Part

Container lashing equipment works as an interconnected system. A new lashing rod should therefore be checked against the existing turnbuckle and anchor arrangement. Replacing only one component without confirming compatibility can introduce a mismatch.

Follow the Approved Securing Arrangement

The number, location and configuration of lashings should follow the applicable cargo securing manual, vessel-specific instructions and operating procedures. The same container dimensions do not automatically mean that every vessel uses the same lashing arrangement.

Industry guidance also emphasizes reducing unnecessary work at elevated container positions and designing lashing equipment around practical handling requirements. This is one reason why rod length, component weight and operating mechanism should be considered during procurement rather than after delivery.

How Can Lashing Equipment Be Maintained?

Marine environments expose steel fittings to saltwater, humidity, impact and repeated mechanical loading. A practical inspection program should therefore cover both corrosion and mechanical condition.

• Remove dirt, salt deposits and contaminants that may hide defects.
• Inspect locking components and moving parts for abnormal wear.
• Check threads for damage, galling or excessive corrosion.
• Inspect lashing rods for bending or deformation.
• Examine hooks, knobs, pins and end fittings for wear.
• Check turnbuckles for smooth adjustment and secure connection.
• Separate damaged components from service rather than returning them to general stock.
• Maintain inspection records when required by the vessel or operating system.

Maintenance intervals should reflect actual operating conditions, manufacturer instructions and the vessel's management procedures. Components exposed to frequent handling or aggressive marine conditions may require closer inspection than equipment used under less demanding conditions.

What Should Buyers Ask a Manufacturer?

For a bulk purchase or replacement project, a supplier should be able to discuss more than unit price. Clear technical communication at the quotation stage can prevent incorrect production and costly rework.

For international buyers, it is particularly useful to send drawings, photographs, existing part numbers or old component samples where possible. This gives the manufacturer more information than a product name alone and reduces the risk of supplying a visually similar but mechanically incompatible fitting.

Qingdao ChuanGang Marine Accessory Co., Ltd. provides container securing and marine accessory solutions for customers requiring practical component matching, consistent specifications and dependable supply. When requesting a quotation, buyers can provide the container type, component name, dimensions, quantity, application and any required documentation so the supplier can evaluate the requirement more accurately.
