What are the design differences between top running and under running double girder bridge cranes
2026-04-15
When selecting an overhead lifting solution for industrial applications, understanding the design differences between top running and under running Double Girder Bridge Crane systems is essential. FYL specializes in engineering both configurations to meet diverse facility layouts and load requirements. The primary distinction lies in how the bridge girders interface with the runway structure, which directly impacts building clearance, wheel load distribution, and overall system cost.
Structural Configuration Overview
| Feature | Top Running Double Girder Bridge Crane | Under Running Double Girder Bridge Crane |
|---|---|---|
| Rail position | Rail mounted on top of runway beams | Rail attached to bottom flange of runway beams |
| End truck placement | Runs on top of runway rails | Hangs from runway rails |
| Building structure required | Heavy-duty runway beams and columns | Existing building beams can be utilized |
| Headroom utilization | Less efficient; requires more vertical space | More efficient; maximizes hook height |
| Typical load capacity | 10 to 100+ tons | 3 to 20 tons |
| Runway beam support | Requires dedicated crane runway beams | Can use building’s roof trusses or purlins |
Key Design Differences Explained

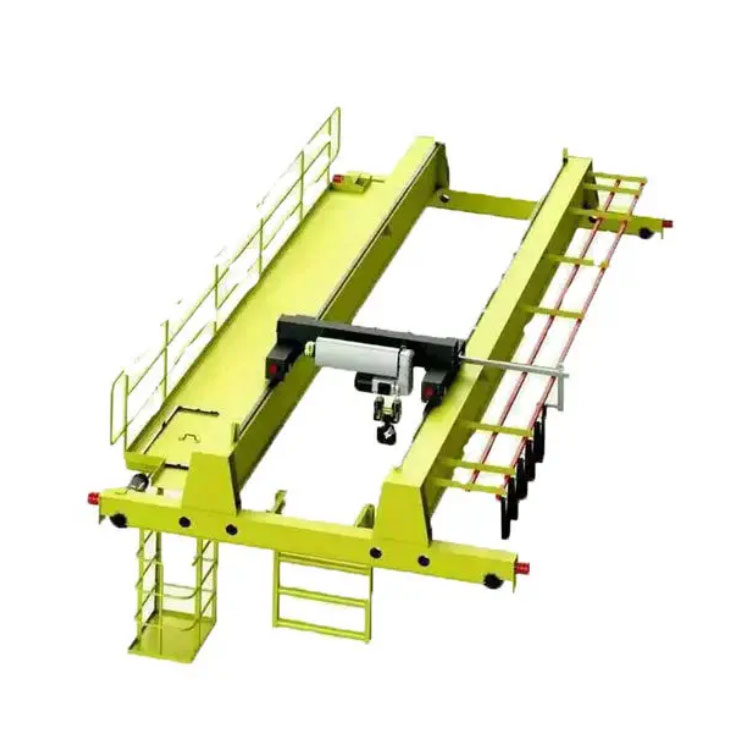

For top running Double Girder Bridge Crane systems, the bridge girders move along rails secured to the top of runway beams supported by columns. This design allows for very high capacities and longer spans. The wheel loads are transferred directly to the column foundations, requiring robust structural support. In contrast, an under running Double Girder Bridge Crane uses end trucks that roll on the lower flange of overhead building beams. This eliminates the need for separate runway beams, reducing structural steel costs but limiting capacity due to flange strength constraints.
FYL integrates both designs with features such as variable frequency drives, fail-safe brakes, and anti-sway technology. Top running models from FYL often incorporate fully enclosed, weather-resistant components suitable for outdoor use, while under running versions are optimized for indoor facilities with limited side clearance.
Double Girder Bridge Crane FAQ Common Questions
Question 1: Can an under running double girder bridge crane be installed in a facility with low ceiling height without major renovations?
Answer: Yes, under running Double Girder Bridge Crane systems are specifically suited for low-ceiling facilities. Because the crane hangs directly from the bottom flange of existing roof beams, no additional runway support columns or top-mounted rails are required. This design typically saves 12 to 24 inches of vertical headroom compared to a top running crane. FYL offers custom under running configurations that can operate effectively even when hook clearance is limited to 8 feet from the floor. However, the building beams must be evaluated to ensure their bottom flange thickness and strength can handle the wheel loads. In many cases, minor reinforcement of the existing beams is sufficient, avoiding major structural changes.
Question 2: Which design offers lower long-term maintenance cost for heavy-duty applications?
Answer: For heavy-duty applications with frequent lifts exceeding 20 tons, the top running Double Girder Bridge Crane configuration generally provides lower long-term maintenance costs. This is because top running cranes use larger wheels and axles that experience less rolling resistance and slower wear. The runway rails are mounted on top of beams, which simplifies rail alignment checks and replacement. Additionally, top running designs from FYL feature accessible service platforms and centralized lubrication points. Under running cranes, while cheaper to install, place higher stress on the rail flange contact area, leading to faster wheel flange and rail edge wear, especially in dusty or abrasive environments. Regular under running system maintenance often requires more frequent wheel inspections and realignments, increasing labor costs over time.
Question 3: How does seismic performance differ between top running and under running double girder bridge cranes?
Answer: Top running Double Girder Bridge Crane systems generally offer superior seismic performance due to their positive rail engagement and structural redundancy. The crane’s end trucks sit atop runway beams with rail clamps that can be fitted with seismic stops to limit lateral movement during earthquakes. FYL top running cranes can be equipped with energy-dissipating buffers that absorb shock loads without derailing. Under running cranes, by contrast, rely on the bottom flange grip, which provides less lateral restraint. During seismic events, under running cranes are more prone to flange separation or walk-off if horizontal accelerations exceed 0.3g. For facilities in high-seismic zones, FYL recommends top running designs with additional tie-back systems and reinforced runway beams. Under running installations in such areas require seismic testing of the building beam connections and may need supplementary guide rollers.
Conclusion
Choosing between top running and under running Double Girder Bridge Crane designs depends on facility height, capacity needs, and existing building structure. FYL provides engineering support to evaluate your specific parameters, including span length, duty cycle, and environmental conditions.
Contact us today for a customized layout comparison and load analysis. Our engineers will help you select the optimal Double Girder Bridge Crane configuration and deliver a detailed proposal within 48 hours.
