How to Select and Use a Joining Shackle Effectively?
2026-01-20
Summary: Joining shackles are essential components for connecting anchor chains, mooring lines, and lifting equipment. This guide explains their types, specifications, applications, and installation best practices, helping marine and industrial users make informed decisions.
Table of Contents
- Introduction to Joining Shackles
- Types of Joining Shackles
- Specifications and Material Standards
- Installation and Safety Guidelines
- Maintenance Tips
- Frequently Asked Questions
- Contact Information

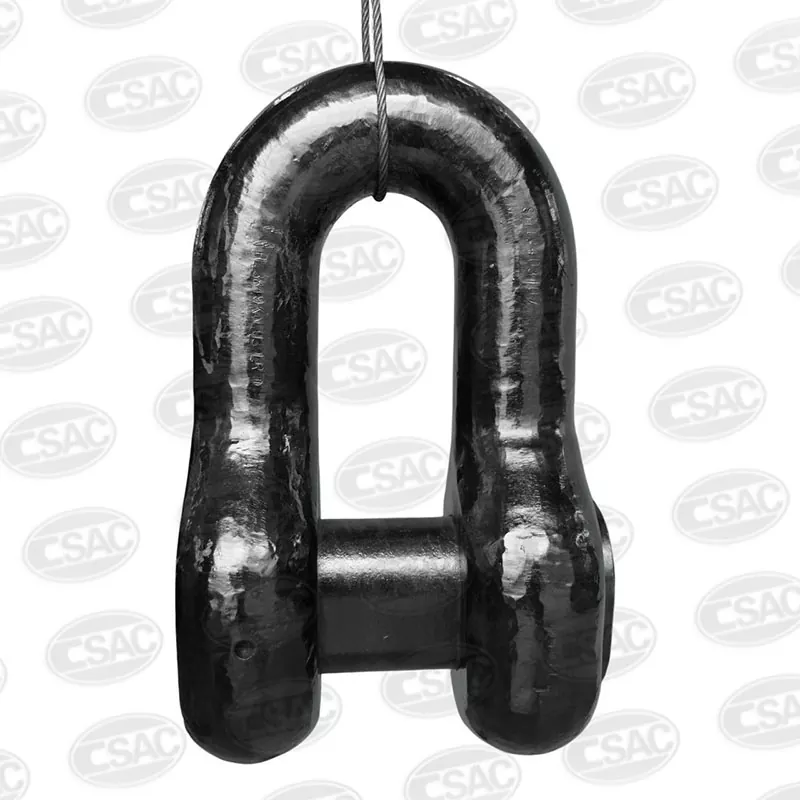

Introduction to Joining Shackles
Joining shackles are robust connectors widely used in maritime, offshore, and industrial applications. They provide a reliable link between anchor chains, mooring lines, and other heavy-duty rigging components. Their primary function is to ensure safety and load stability while handling dynamic forces at sea or on land.
Zhoushan Zhongnan Anchor Chain Co., Ltd, a leading manufacturer in China, offers joining shackles with diameters ranging from 14mm to 122mm. These shackles are designed with taper pins to secure connections and are certified under international standards including CCS, BV, DNV, ABS, NK, LR, RS, KR, and RINA.
Types of Joining Shackles
Understanding shackle types is crucial for selecting the right product for your application. The most common types include:
- Anchor Chain Joining Shackle: Used to connect anchor chain segments securely.
- Mooring Shackle: Designed for connecting mooring lines or ropes in port and offshore operations.
- Industrial Lifting Shackle: Employed in heavy-duty lifting and rigging, supporting dynamic and static loads.
Each type has unique characteristics that suit specific marine or industrial conditions.
Specifications and Material Standards
Choosing the correct specifications ensures safety and durability. Key parameters include:
| Parameter | Description |
|---|---|
| Diameter | 14mm – 122mm, accommodating different chain sizes |
| Material | High-grade alloy steel with anti-corrosion coating |
| Pin Type | Taper pin for secure fastening |
| Certification | CCS, BV, DNV, ABS, NK, LR, RS, KR, RINA |
| Working Load | Varies depending on diameter and application, typically rated for high-load marine and industrial use |
These specifications ensure shackles withstand rigorous conditions at sea and in industrial environments.
Installation and Safety Guidelines
Proper installation is critical for performance and safety. Follow these steps:
- Inspect the shackle for any visible defects before installation.
- Ensure the shackle diameter matches the chain size.
- Align the shackle pin and secure it with the taper pin system.
- Do not exceed the rated load capacity.
- Perform routine inspections to detect wear or deformation.
Incorrect installation can lead to equipment failure, posing serious safety risks.
Maintenance Tips
Regular maintenance prolongs the lifespan of joining shackles:
- Lubricate the pin and hinge points to reduce friction and corrosion.
- Store shackles in dry, ventilated areas when not in use.
- Replace any shackle showing signs of cracking or excessive wear immediately.
- Maintain a log of inspections and load tests.
Following these maintenance practices ensures reliable operation and reduces downtime in critical operations.
Frequently Asked Questions
Q1: What is the maximum load a joining shackle can handle?
A1: The working load depends on the shackle diameter and material grade. Zhoushan Zhongnan Anchor Chain Co., Ltd provides detailed load charts for each size, ensuring safe operation.
Q2: Can joining shackles be used in saltwater environments?
A2: Yes, all Zhoushan Zhongnan shackles are manufactured with high-grade alloy steel and anti-corrosion coatings suitable for marine conditions.
Q3: How often should shackles be inspected?
A3: Shackles should be inspected before each use and routinely every 3–6 months, depending on usage and environmental exposure.
Q4: Are custom sizes available?
A4: Yes, custom shackles can be produced to meet specific diameter or load requirements.
