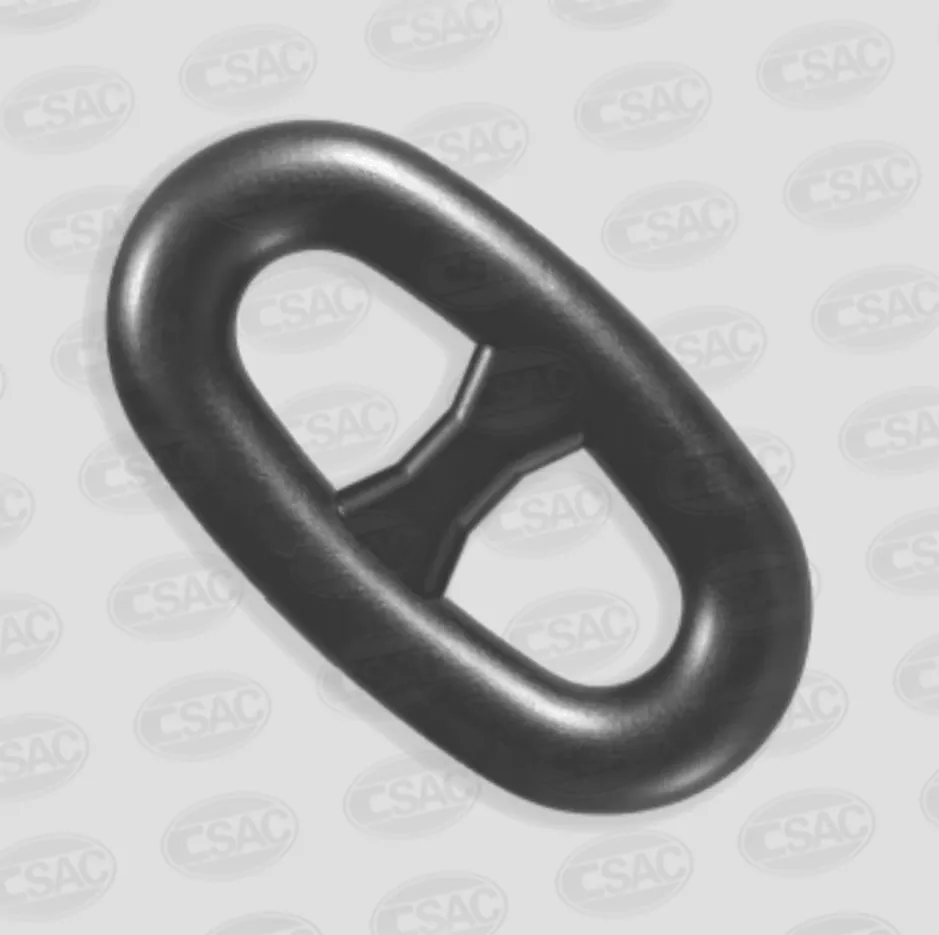

How to Inspect and Maintain Grade R4/R4S Stud Link Offshore Mooring Chain for Maximum Lifespan
2026-06-12
For offshore operations, the reliability of your mooring system is non-negotiable. Grade R4/R4S Stud Link Offshore Mooring Chain is engineered to endure extreme loads, deepwater currents, and corrosive marine environments. However, even the highest-grade chain requires a disciplined inspection and maintenance routine to achieve its maximum service life. At Zhongnan, we have supplied these critical chains to floating production units and drilling rigs worldwide, and we know that proactive care directly translates to safety and cost savings.
Routine Inspection Checklist
A systematic approach helps detect issues before they become failures. Use the table below as your weekly visual and dimensional inspection guide.
| Inspection Point | Method | Acceptance Criterion |
|---|---|---|
| Stud integrity | Visual & hammer tapping | No cracks, loose rotation, or missing studs |
| Link wear | Caliper measurement | Less than 10% diameter reduction from original |
| Surface corrosion | Visual & pit gauge | No pitting deeper than 1 mm |
| Cracking | MPI (Magnetic Particle Inspection) | No linear or transverse indications |
| Proof test (every 5 years) | Hydraulic load cell | 100% of specified proof load without permanent set |
Best Maintenance Practices for Grade R4/R4S Stud Link Offshore Mooring Chain
-
Regular cleaning: Remove marine growth and deposits using freshwater jets. Salt accumulation accelerates crevice corrosion.
-
Lubrication: Apply a chain-grade, environmentally acceptable lubricant to stud-link bearing surfaces after each cleaning.
-
Rotation schedule: End-for-end the chain every 3–5 years to distribute wear evenly across all links.
-
Record keeping: Zhongnan recommends digital logs of each link’s diameter, inspection date, and any repairs.
Grade R4/R4S Stud Link Offshore Mooring Chain FAQ
Q1: What is the typical service life of Grade R4/R4S Stud Link Offshore Mooring Chain under normal operating conditions?
A1: When properly inspected and maintained, Grade R4/R4S Stud Link Offshore Mooring Chain can achieve 20–25 years of service life in deepwater environments. Factors such as cathodic protection system efficiency, chain tension cycles, and seawater temperature influence longevity. Zhongnan advises annual MPI for chains over 10 years old to detect subsurface fatigue before it propagates.
Q2: Can worn Grade R4/R4S Stud Link Offshore Mooring Chain be repaired by welding, and is that recommended?
A2: Welding on Grade R4/R4S Stud Link Offshore Mooring Chain is strictly prohibited unless performed by a certified facility using approved preheat and post-weld heat treatment procedures. Even then, only replacement links that match the original material grade and heat treatment should be installed. Zhongnan supplies pre-tested R4/R4S repair links with full certification to eliminate field welding risks.
Q3: How often should the proof test be repeated for Grade R4/R4S Stud Link Offshore Mooring Chain in service?
A3: Industry standards (API RP 2SK, DNVGL-OS-E301) require a full proof test every five years or after any major overload event. The test must apply 100% of the original proof load (typically 2.0× WLL for R4, 2.06× WLL for R4S) with no permanent elongation. Zhongnan offers load testing services and replacement chain sections to minimize downtime during recertification.
Why Professional Maintenance Matters
Neglecting inspection schedules leads to sudden chain failure, which risks rig drift, riser damage, and environmental incidents. Zhongnan manufactures Grade R4/R4S Stud Link Offshore Mooring Chain with traceable material certificates and dimensional tolerances that simplify field inspections. Combining our chain with a disciplined maintenance plan ensures your asset remains operational through the toughest weather windows.
