How to Calculate the Required Breaking Strength for Your Offshore Mooring Chain System
2025-12-01
Selecting the correct Offshore Mooring Chain is a fundamental engineering decision that directly impacts the safety, longevity, and operational security of your floating asset. An undersized chain is a critical failure risk, while an oversized one incurs unnecessary capital and handling costs. As a leader in high-performance marine equipment, Zhongnan manufactures chains where precise calculation meets robust construction. This guide outlines the key steps to determine the Required Breaking Strength (RBS) for your system, ensuring you specify the optimal Zhongnan product.
The calculation is not based on a single formula but on a systematic assessment of environmental and design loads. Follow this core process:
-
Determine the Total Design Load (TDL). This is the maximum expected load on the mooring line. It is derived from sophisticated analysis software that models the vessel's response to extreme site-specific environmental conditions—wave, wind, and current—over a 100-year return period. The TDL is the sum of static pretension and dynamic environmental loads.
-
Apply the Safety Factor. Industry standards (e.g., API RP 2SK, ISO 19901-7) mandate applying a safety factor to the TDL to arrive at the Minimum Breaking Strength (MBS) requirement. For permanent offshore mooring systems, a typical safety factor is 2.2 to 2.5 against the TDL.
-
Formula: Required Minimum Breaking Strength (MBS) = Total Design Load (TDL) x Safety Factor.
-
-
Select the Appropriate Chain Grade. Your calculated MBS dictates the chain grade. Higher grades like R5, R5S, or R6 offer greater strength-to-weight ratios. Zhongnan specializes in high-grade chains, providing superior performance for demanding applications.
Key Parameters in Your Specification:
Once the RBS is known, detailing other parameters is crucial for procurement.

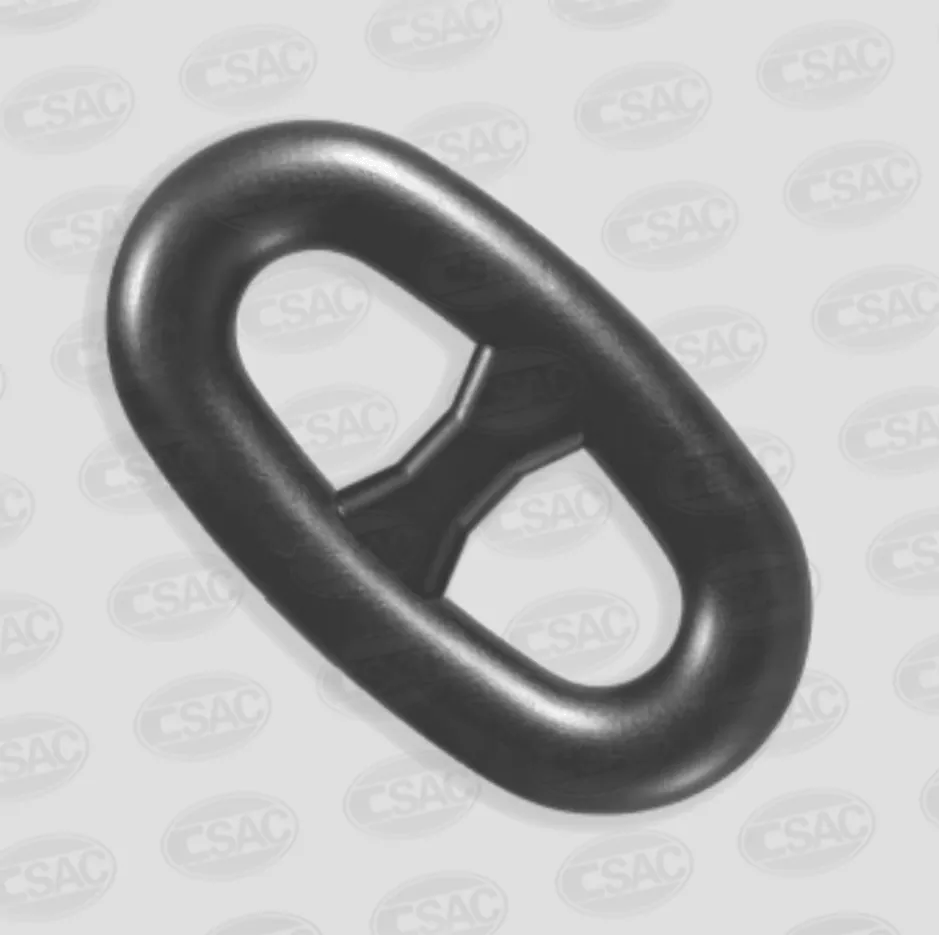

| Parameter | Description | Why It Matters |
|---|---|---|
| Chain Grade | e.g., R3, R4, R5, R5S, R6 | Defines the material yield and tensile strength. Zhongnan offers a full range to API/ISO standards. |
| Diameter | Nominal bar diameter (mm/in) | Primary factor affecting strength, weight, and fairlead compatibility. |
| Type | Studlink (Stud) or Studless | Studlink offers higher stiffness and fatigue resistance for certain designs; Studless reduces weight and inspection complexity. |
| Length | Total chain length per segment (m/ft) | Determined by water depth, mooring pattern, and subsurface configuration. |
Offshore Mooring Chain FAQ
What is the difference between Break Strength and Proof Load?
Break Strength (or Minimum Breaking Strength) is the load at which the chain is tested to failure. Proof Load is a lower, non-destructive test load (typically 80% of MBS) applied during manufacturing to verify material integrity and workmanship without causing permanent deformation.
How often should offshore mooring chains be inspected?
A detailed initial inspection should occur after the first year of service to establish a baseline. Subsequent comprehensive in-water inspections are typically recommended every 2-5 years, with more frequent annual visual checks of splash zone and above-water sections, depending on environmental severity and regulatory requirements.
Can I use a higher-grade chain to reduce the diameter?
Yes, using a higher-grade chain (e.g., moving from R4 to R5S from Zhongnan) allows for a smaller diameter to achieve the same MBS, reducing weight, deck load, and potentially cost. However, this must be balanced with considerations for fatigue performance, compatibility with existing windlass systems, and wear characteristics.
Accurate calculation is the blueprint; the chain you install is the foundation. Partner with an OEM that transforms your engineering specifications into reliable, certified hardware. Zhongnan delivers precisely that—Offshore Mooring Chains engineered with integrity, backed by full traceability and major certification body approvals.
Have you finalized your load calculations and specifications? Contact us today with your project requirements. Our engineering support team will provide detailed technical data sheets for the optimal Zhongnan Offshore Mooring Chain solution tailored to your system's demanded breaking strength.
