How Does a Cutter Suction Dredger Work to Maximize Efficiency and Reduce Project Costs?
2026-05-06
Abstract
A Cutter Suction Dredger (CSD) is one of the most efficient and versatile dredging solutions used in river restoration, port construction, land reclamation, and mining operations. However, many project owners face challenges such as low productivity, high operational costs, sediment variability, and equipment downtime. This article provides a comprehensive breakdown of how a cutter suction dredger works, how it addresses common operational pain points, and how to select the right configuration for optimal results. Practical insights, structured explanations, and actionable guidance are included to support decision-making.
Table of Contents
- 1. Overview of Cutter Suction Dredger
- 2. Working Principle Explained
- 3. Key Components and Functions
- 4. Why Choose a Cutter Suction Dredger
- 5. Common Customer Pain Points and Solutions
- 6. How to Select the Right Model
- 7. Typical Applications
- 8. Comparison with Other Dredgers
- 9. FAQ
- 10. Conclusion
1. Overview of Cutter Suction Dredger

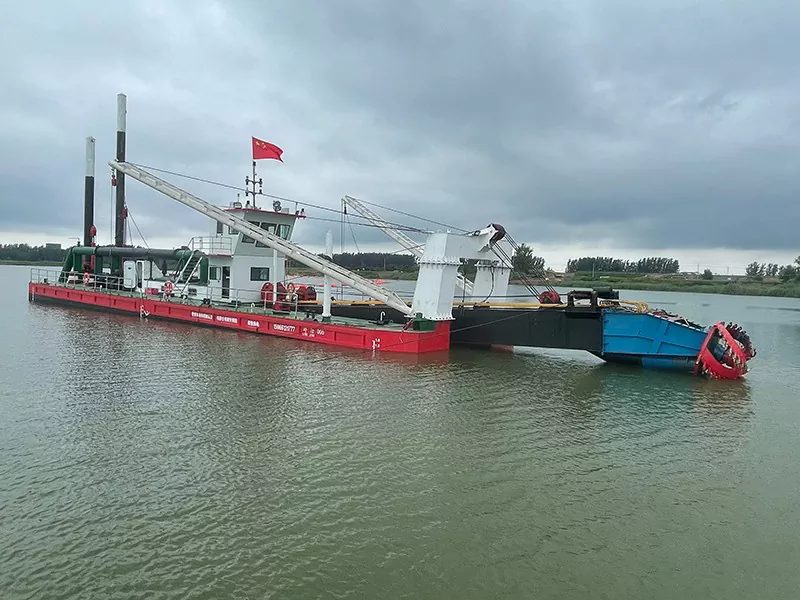

A Cutter Suction Dredger is a stationary dredging vessel equipped with a rotating cutter head mounted on a ladder. The cutter head loosens compacted soil, sand, or clay, which is then suctioned through a pipeline using a powerful centrifugal pump.
Unlike trailing suction hopper dredgers, a CSD operates in a fixed position using spuds and swing anchors, making it highly suitable for precision dredging and hard material excavation.
2. Working Principle Explained
The operation of a cutter suction dredger follows a systematic process designed for continuous material removal:
- Cutter Head Rotation: The cutter head breaks up compacted sediments.
- Suction Process: A dredge pump creates negative pressure to transport slurry.
- Pipeline Transport: The slurry mixture is discharged via floating or land pipelines.
- Swing Movement: The dredger swings laterally using anchor cables to cover the dredging area.
- Step Forward: After completing a swing cycle, the spud system advances the dredger forward.
This cyclic yet continuous operation ensures high productivity and controlled excavation.
3. Key Components and Functions
| Component | Function |
|---|---|
| Cutter Head | Breaks hard soil and sediments into manageable particles |
| Dredge Pump | Transfers slurry through the pipeline system |
| Ladder | Supports cutter head and controls dredging depth |
| Spud System | Anchors and stabilizes the dredger |
| Swing Winches | Controls side-to-side movement |
| Discharge Pipeline | Transports dredged material to designated location |
Each component plays a critical role in maintaining operational efficiency and minimizing downtime.
4. Why Choose a Cutter Suction Dredger
- High efficiency in compacted soil and clay conditions
- Continuous dredging operation with minimal interruption
- Precise excavation control
- Cost-effective for long-term projects
- Customizable configurations for different environments
Manufacturers such as Qingzhou City Dingke Dredger Equipment Co., Ltd. specialize in designing tailored dredging solutions that meet diverse project requirements, ensuring both reliability and performance.
5. Common Customer Pain Points and Solutions
Low Production Efficiency
Many operators struggle with insufficient output due to improper cutter power or pump capacity. Selecting the correct power ratio between cutter head and pump significantly improves productivity.
Frequent Blockages
Blockages often occur when dredging mixed materials. A well-designed cutter head combined with optimized slurry density management reduces clogging risks.
High Fuel Consumption
Energy inefficiency is typically caused by mismatched components. Advanced hydraulic systems and optimized engine configurations help reduce fuel costs.
Maintenance Downtime
Poor equipment quality leads to frequent breakdowns. Choosing durable materials and modular designs simplifies maintenance and extends equipment lifespan.
6. How to Select the Right Model
Choosing the right cutter suction dredger depends on multiple technical and environmental factors:
- Dredging Depth: Determines ladder length and pump capacity
- Soil Type: Influences cutter head design
- Discharge Distance: Affects pump power and pipeline configuration
- Project Scale: Defines dredger size and output capacity
- Mobility Requirements: Modular or transportable designs may be necessary
Working with experienced manufacturers like Qingzhou City Dingke Dredger Equipment Co., Ltd. ensures accurate configuration and long-term operational stability.
7. Typical Applications
- River dredging and maintenance
- Port and harbor construction
- Land reclamation projects
- Mining and sand extraction
- Environmental remediation
These applications benefit from the precision and efficiency of cutter suction dredging systems.
8. Comparison with Other Dredgers
| Type | Best Use Case | Limitations |
|---|---|---|
| Cutter Suction Dredger | Hard soil, precision dredging | Limited mobility |
| Trailing Suction Hopper Dredger | Loose sand, offshore work | Less precise |
| Bucket Dredger | Heavy-duty excavation | Lower efficiency |
9. FAQ
What materials can a cutter suction dredger handle?
It can process sand, clay, silt, gravel, and even moderately hard rock depending on cutter configuration.
How far can dredged material be transported?
With booster pumps, slurry can be transported several kilometers efficiently.
Is it suitable for small projects?
Yes, modular and compact models are available for small-scale operations.
What is the typical lifespan?
With proper maintenance, a cutter suction dredger can operate effectively for 15–25 years.
10. Conclusion
Understanding how a cutter suction dredger works is essential for optimizing dredging efficiency, reducing operational costs, and ensuring project success. From its powerful cutter head to its integrated pumping system, every component is engineered for performance and reliability. Selecting the right equipment and configuration can significantly impact productivity and long-term returns.
If you are planning a dredging project and need a reliable, high-performance solution, Qingzhou City Dingke Dredger Equipment Co., Ltd. offers customized designs tailored to your specific requirements. Contact us today to get expert guidance and maximize your project efficiency.
