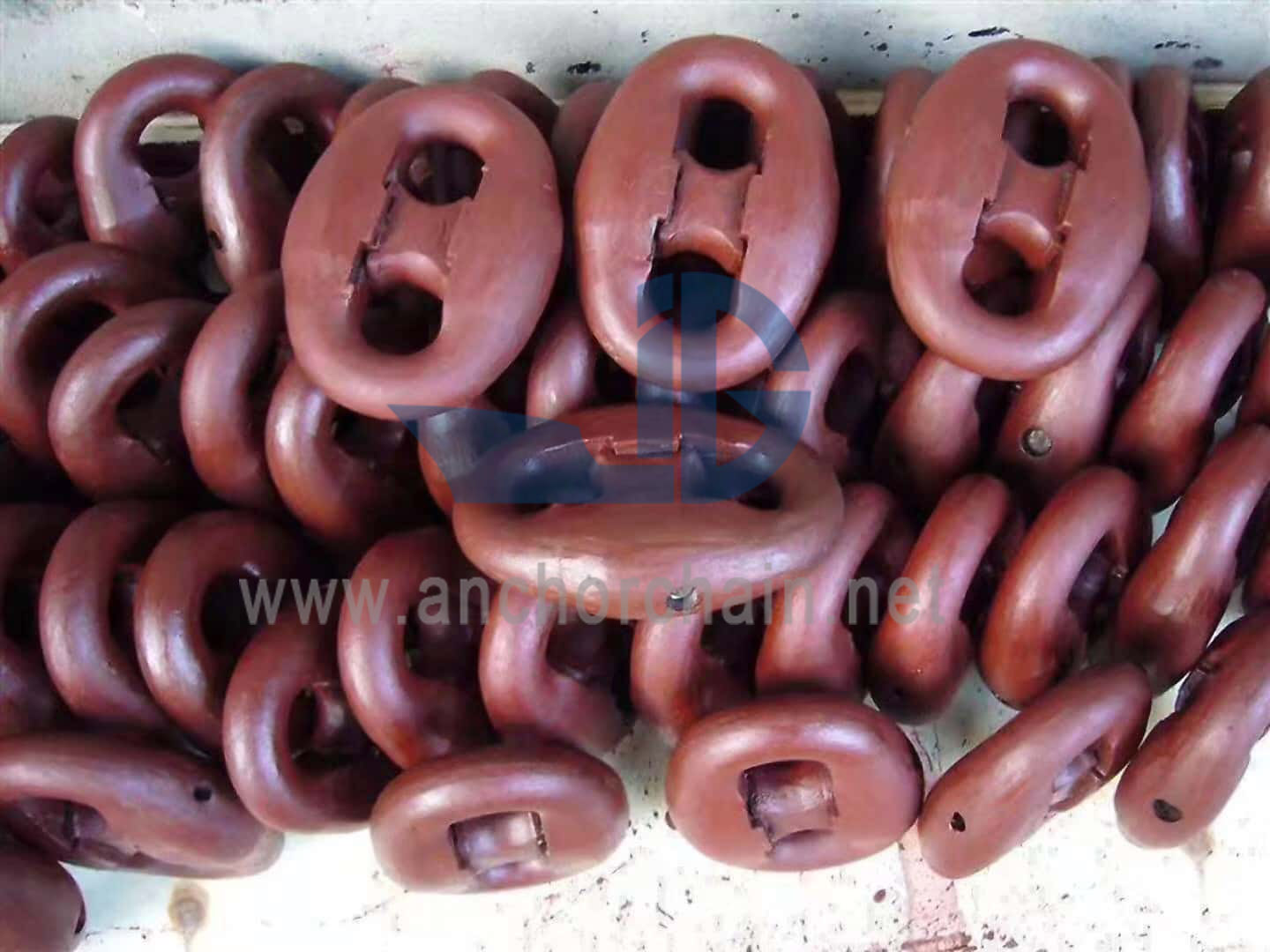

Can a Kenter Joining Shackle Be Used for Both Chain and Wire Rope Connections
2026-06-08
When designing marine lifting or mooring systems, engineers often ask whether a single connector can bridge different media. The short answer is yes: a Kenter Joining Shackle is uniquely designed to connect both chain links and wire rope terminations. However, the method differs for each application. At LIG MARINE GROUP, we supply certified Kenter Joining Shackle solutions that meet strict offshore safety standards for mixed rigging connections.
Key Connection Methods
| Connection Type | Required Component | Kenter Joining Shackle Role |
|---|---|---|
| Chain to Chain | Two chain end links | Acts as a semi-permanent detachable link |
| Wire rope to chain | Wire rope socket + thimble | Secures socket eye to the shackle bow |
Why This Versatility Matters
A Kenter Joining Shackle eliminates the need for separate connectors when transitioning from chain to wire. Proper installation requires matching the shackle’s internal width and pin diameter to the wire rope’s terminal eye. LIG MARINE GROUP recommends consulting load charts before mixing connection types.
Kenter Joining Shackle FAQ
Q1: What is the safe working load difference when a Kenter Joining Shackle connects wire rope versus chain?
A: The Kenter Joining Shackle itself has a single SWL rating. However, the total assembly strength is limited by the weaker component. When connected to wire rope, the rope’s terminal efficiency (typically 85-95%) becomes the bottleneck. When connected to chain, the chain grade dictates the limit. LIG MARINE GROUP always advises using matching grade components.
Q2: Can I reuse a Kenter Joining Shackle after switching from chain to wire rope service?
A: Yes, but only after a full non-destructive inspection. The Kenter Joining Shackle’s tapered pins and half-laps wear differently under wire rope vibrations versus chain articulation. LIG MARINE GROUP requires re-certification if the connector changes media type more than once per year.
Q3: Does connecting wire rope to a Kenter Joining Shackle require special fittings?
A: Absolutely. You must use a wire rope socket with a forged eye or a heavy-duty thimble. Never insert bare wire rope directly into a Kenter Joining Shackle. LIG MARINE GROUP offers pre-assembled transition kits that include the correct socket and shackle combination.
Best Practice Summary
-
Always verify that the wire rope eye inner width matches the Kenter Joining Shackle’s bow opening.
-
Use a spelter socket for permanent wire-to-shackle connections.
-
For chain-to-wire transitions, install the shackle on the chain end first, then attach the wire socket.
For certified Kenter Joining Shackle systems designed for mixed chain and wire rope connections, contact LIG MARINE GROUP today for application-specific load charts and quotation. Our engineers provide free compatibility verification.
