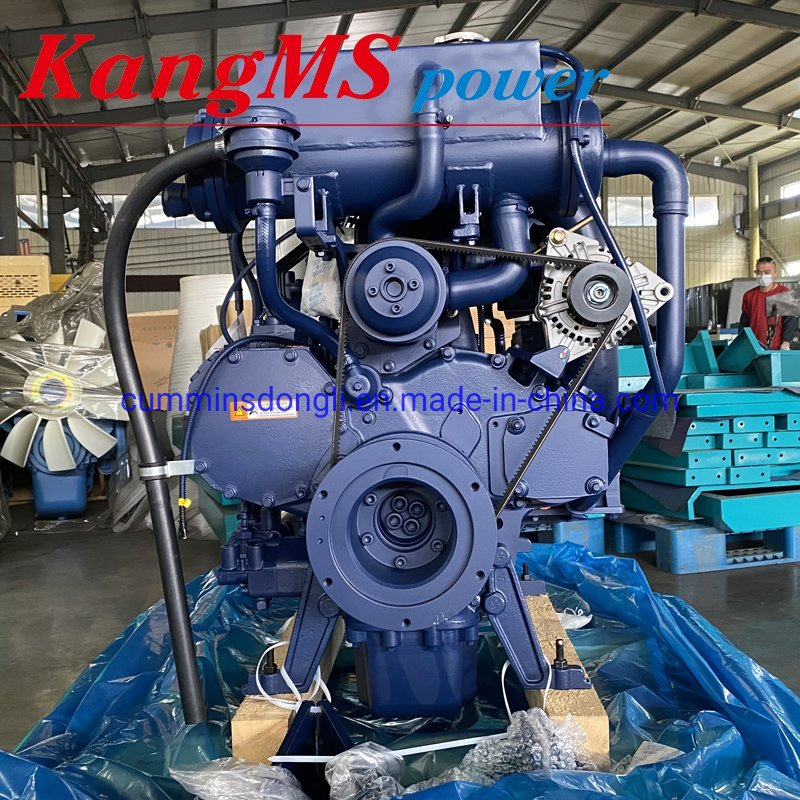

Weichai Marine Engine 4cylinder in Line 95HP Shrimp Boat Engine Propulsion Engine
WP4C MARINE ENGINEOverviewWP4/WP6 series diesel engine is upgrade version of 226B series high-speed diesel engine which is manufactured by a joint venture co-founded by Weichai and Germany-based Deutz AG with increased strokes and optimized design. It has advantages of compact structure, high reliab......
Send Inquiry
Product Description

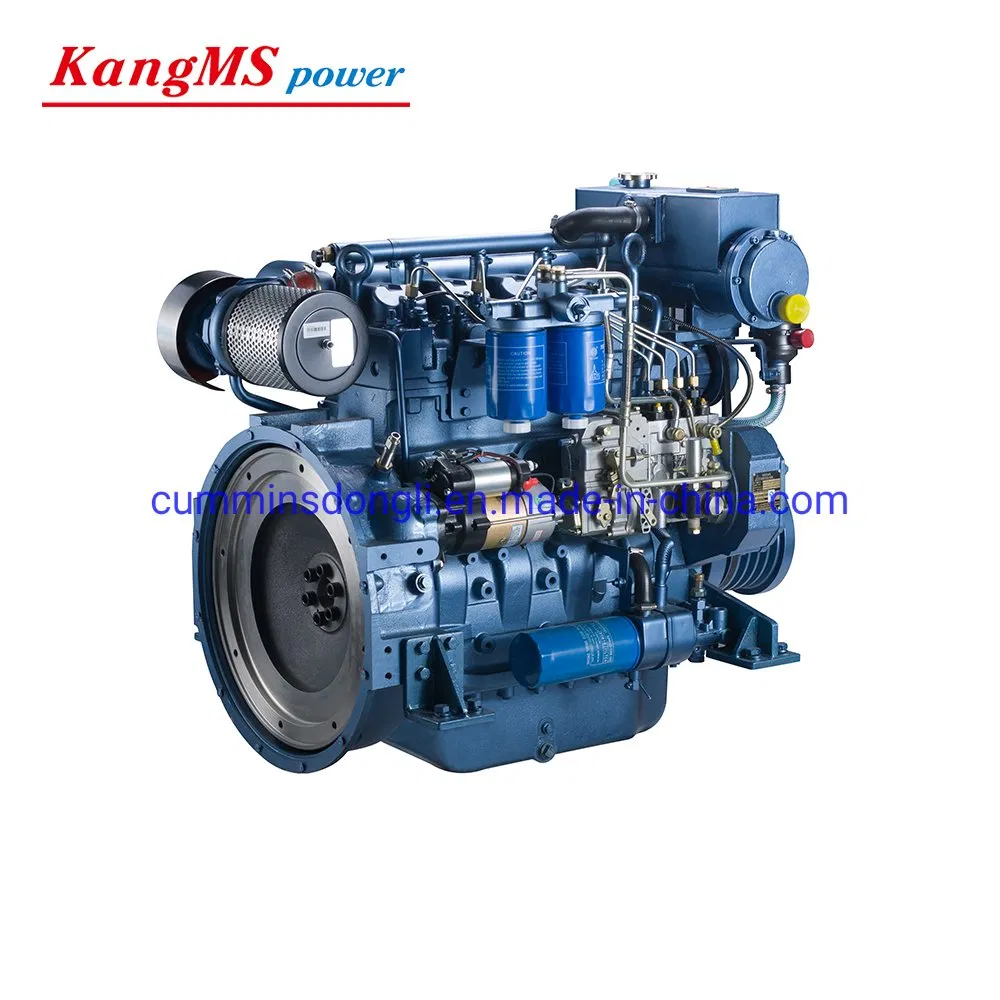

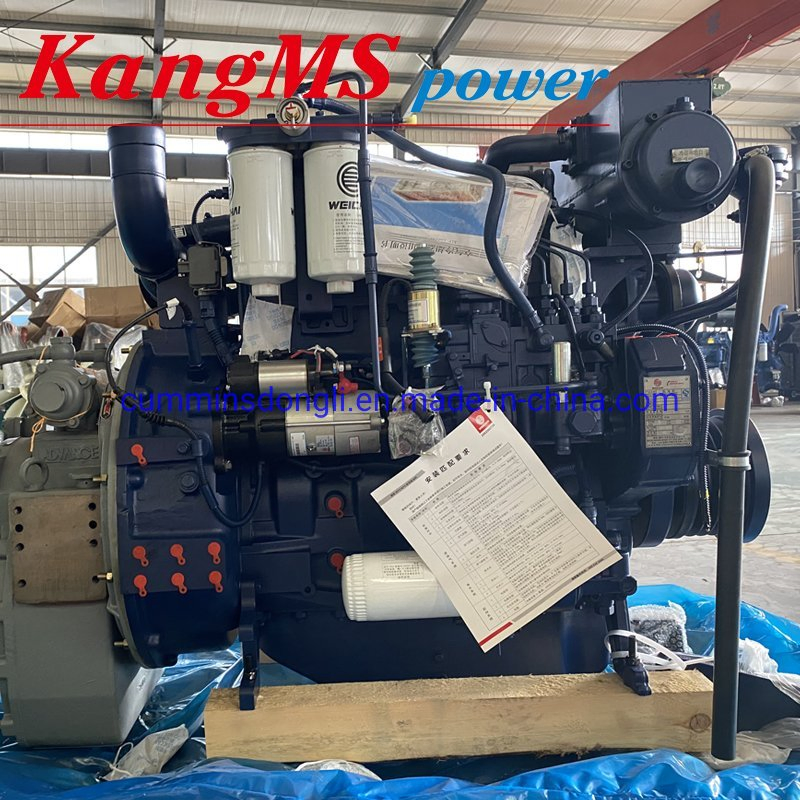

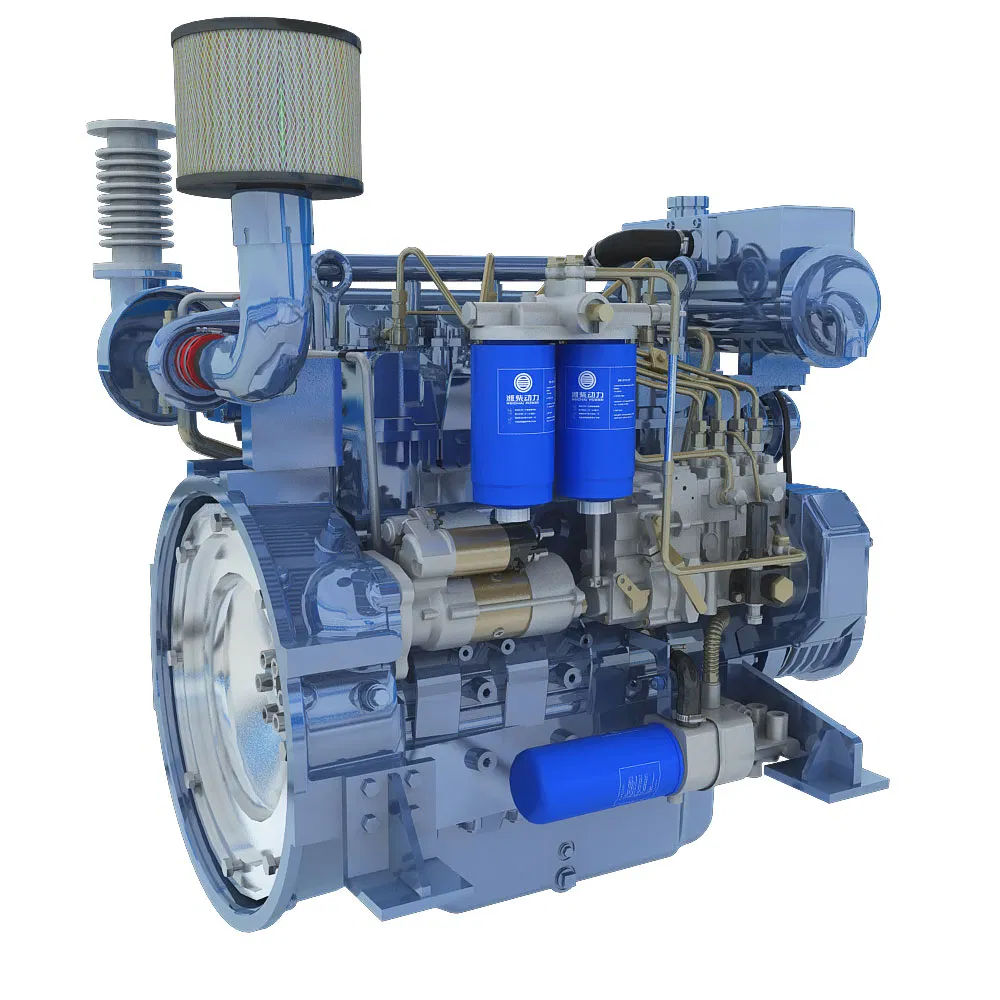

WP4C MARINE ENGINE
Overview
WP4/WP6 series diesel engine is upgrade version of 226B series high-speed diesel engine which is manufactured by a joint venture co-founded by Weichai and Germany-based Deutz AG with increased strokes and optimized design. It has advantages of compact structure, high reliability, high economic performance, easy operation and maintenance. This series engine, as main or auxiliary engine, are chiefly mounted on small-size transport ships and fishing boats on inland rivers.Power range:35-168kW
| Basic Specification for Marine Engine | |||
| brand | Weichai Deutz | model | WP4C130-21 |
| rated power | 95kW (130hp) | rated speed | 2100rpm |
| intake mode | Pressurization and cooling | idling | 650±30 r/min |
| number of cylinders | 4 | bore X stroke | 105×130 mm |
| displacement | 4.5 L | rotation direction of crankshaft | clockwise |
| fuel oil consumption | 195 g/kW·h | start mode | electric start |
| lub oil consumption | 0.8g/kW·h | smoke intensity | ≤ 1.2Rb |
| emission standard | IMO TIER II | overhaul period | 12000 h |
| Engine Model | HP | kW | RPM | Aspiration | Power Output Interface |
| D226B-3C1 | 48 | 35 | 1800 | NA | SAE3/11.5 |
| TD226B-3C | 54 | 40 | 1500 | T | SAE3/11.5 |
| TD226B-3C1 | 68 | 50 | 1800 | T | SAE3/11.5 |
| WP4C82-15 | 82 | 60 | 1500 | T | SAE1/14 |
| WP4C95-18 | 95 | 70 | 1800 | T | SAE1/14 |
| WP4C102-21 | 102 | 75 | 2100 | T | SAE1/14 |
| WP4C120-18 | 120 | 88 | 1800 | TA | SAE1/14 |
| WP6C122-15 | 122 | 90 | 1500 | T | SAE1/14 |
| WP6C140-23 | 140 | 103 | 2300 | T | SAE1/14 |
| WP6C142-18 | 142 | 105 | 1800 | T | SAE1/14 |
| WP6C150-15 | 150 | 110 | 1500 | TA | SAE1/14 |
| WP6C156-21 | 156 | 115 | 2100 | T | SAE1/14 |
| WP6C163-23 | 163 | 120 | 2300 | T | SAE1/14 |
| WP6C165-18 | 165 | 122 | 1800 | TA | SAE1/14 |
| WP6C185-21 | 185 | 136 | 2100 | TA | SAE1/14 |
| WP6C198-23 | 198 | 145 | 2300 | TA | SAE1/14 |
| WP6C220-23 | 220 | 162 | 2300 | TA | SAE1/14 |
| WP6C250-25 | 228 | 168 | 2425 | TA | SAE1/14 |
| Series | 226B-3C | WP4 | WP6 |
| Type | inline, direct injection, 4 strokes, water cooled | ||
| Numbers of Cylinders | 3 | 4 | 6 |
| Bore (mm) | 105 | ||
| Stroke (mm) | 120 | 130 | |
| Displacement(L) | 3.12 | 4.5 | 6.8 |
| Fuel consumption (g/kW.h) | <= 200 | ||
| Oil consumption(g/kW.h) | <=0.8 | ||
| Crankshaft rotating direction (face to flywheel) | Anticlockwise | ||
| Net weight(kg) | 460 | 600 | 750 |
| Dimensions(mm) L*W*H | 890*694*1066 | 1058*820*1061 | 1185*744*1083 |
| Overhaul life(h) | 12000 | ||
Engine and block
| Intake air and exhaust system
|
Introduction of Weichai 226B-3/WP4 /WP6Series Marine Diesel Engine:
226B-3/WP4/WP6 marine diesel engine develops from Deutz 226B-4C family with improved structure, increased strokes, and higher displacement, which significantly enhance its reserve power. Strictly in line with German standards, this series engine is equipped with round reentrant ω-shaped combustion chamber, low-vortex cylinder lid, low flow-resistant intake system, and efficient supercharger, which improve combustion greatly. Moreover, its two-degree balancing mechanism effectively reduces vibration and noise. This series is ideally used on river transport ships, fishing boats and public vessels.
Cargo Ship FTLEREL
| NAME OF SHIP | A SHIP | WEIGHT | MECHANICAL CHARACTERISTICS | FREQUENCY | ROTATION | STYLE NUMBER | TRANSMISSION RATIO |
| FTLEREL | Cruise ship | ----- | TD226B-4C2 | 102HP | 2100 rpm | FD170 | 4/1 |

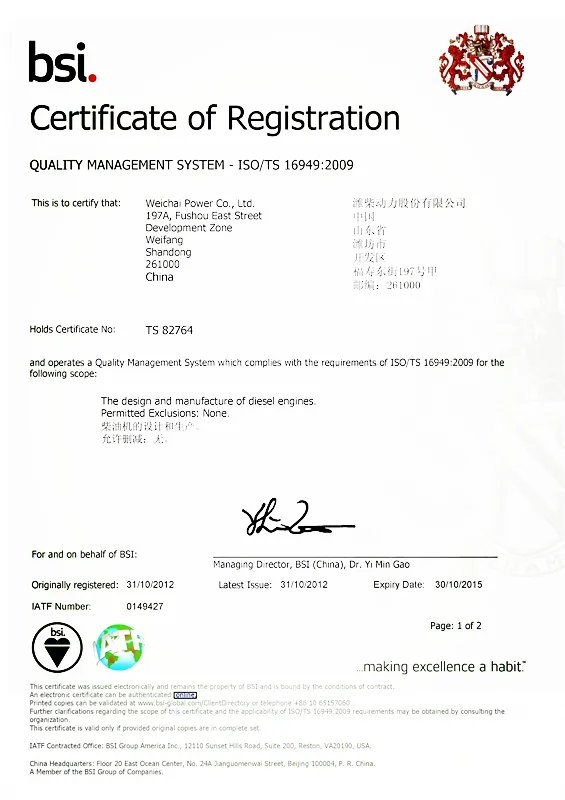

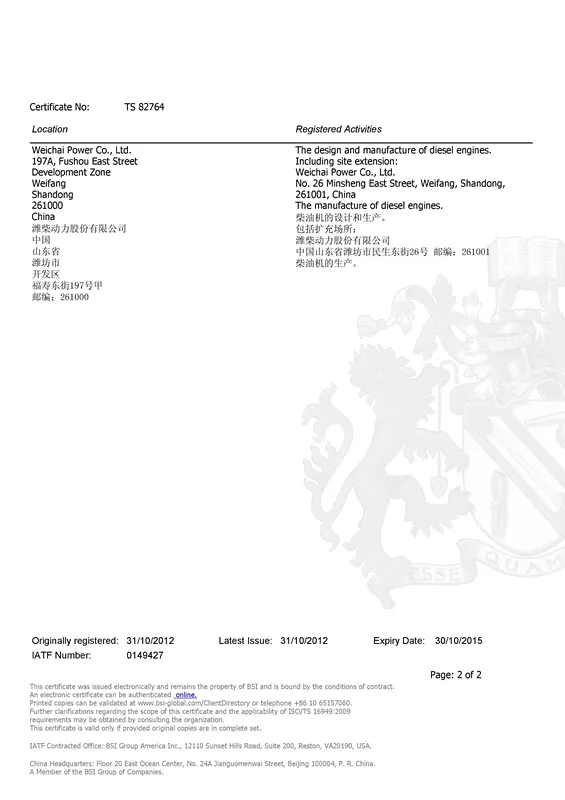

Certifications
