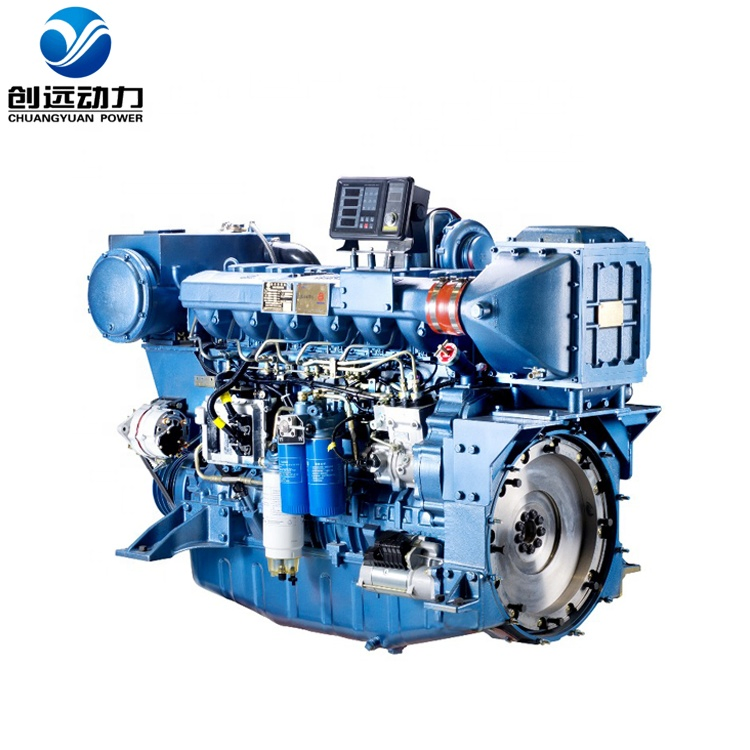

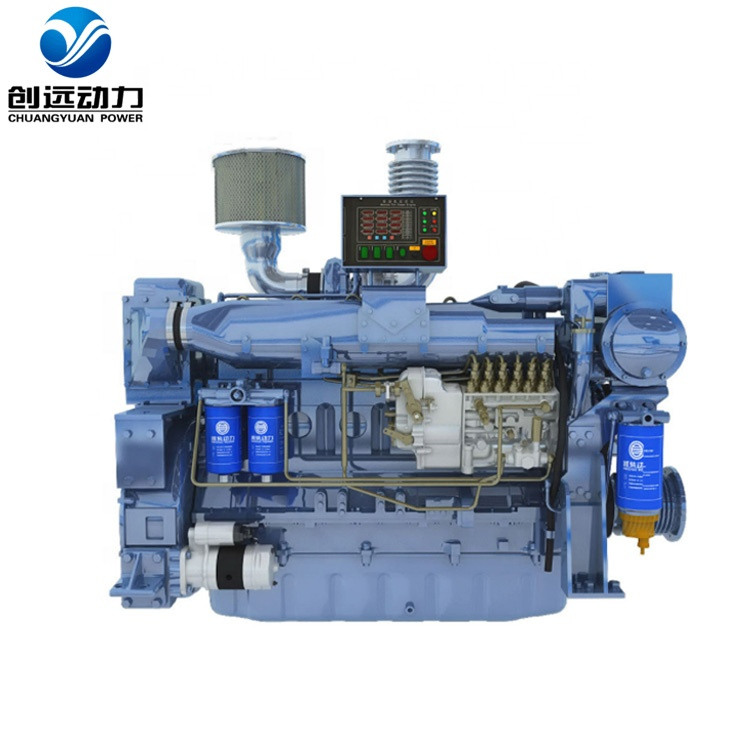

Wd10 200HP Chinese Small Marine Diesel Engine with Gearbox Price for Boat 140-230kw
WEICHAI EngineProduct Description Weichai WD10 / WD12 / WP12 series marine diesel engine has inherited the high-configure strategy of vehicle diesel engine , based on the chatacteristics and use for marine power configuration and requirements, with a new design optimized for the special dedicated ......
Send Inquiry
Product Description
WEICHAI Engine
Product Description
Weichai WD10 / WD12 / WP12 series marine diesel engine has inherited the high-configure strategy of vehicle diesel engine , based on the chatacteristics and use for marine power configuration and requirements, with a new design optimized for the special dedicated design and development of marine energy saving diesel engine.
It is the river shipping , fishing , boats and other vessels the best match official power.
Advantages:
1.Simple structure in linear type ,easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. High pressure double crank to control the die opening and closing.
4.Running in a high automatization and intellectualization,no pollution
5. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
WD10 200hp chinese small marine diesel engine with gearbox price for boat 140-230kw
| ENGINE SPECIFICATION | |
| Engine Type | Inline-6 Cylinders, 4-stroke Diesel Engine |
| Bore x Stroke | 126 mm x 130 mm |
| Combution System | Direct Injection |
| Aspiration | Turbocharged/Turbocharged & Intercooled |
| Starting System | 24V Eletrical Starter |
| Cooling System | Heat Exchanger |
| Displacement | 9.726 L |
| Rotation | Anti-clockwise Facing Flywheel |
| Size of Flyingwheel Housing & Flywheel | SAE & 14 in. |
| Emissions | IMO TIER II |
| Dry Weight | 1050 kg |
| Dimension(L x W x H) | 1896 x 960 x 1211 mm |
WD615/WD10 Series
| Engine Model | Aspiration | Rated output(kw/hp) | Speed(r/min) |
| WD10C170-15 | T | 125/170 | 1500 |
| WD10C190-15 | T | 140/190 | 1500 |
| WD10C218-15 | TA | 160/218 | 1500 |
| WD10C240-15 | TA | 176/240 | 1500 |
| WD10C258-15 | TA | 190/258 | 1500 |
| WD10C278-15 | TA | 205/278 | 1500 |
| WD10C190-18 | T | 140/190 | 1800 |
| WD10C200-18 | TA | 147/200 | 1800 |
| WD10C240-18 | TA | 176/240 | 1800 |
| WD10C278-18 | TA | 205/278 | 1800 |
| WD10C312-18 | TA | 230/312 | 1800 |
| WD10C200-21 | T | 147/200 | 2100 |
| WD10C278-21 | TA | 205/278 | 2100 |
| WD10C300-21 | TA | 220/300 | 2100 |
| WD10C326-21 | TA | 240/326 | 2100 |
