Water Cooling Sdec Sc15g Man Series Inboard Used Marine Manufacturers Machinery Diesel Engine for Boat 280-330kw
Water Cooling Sdec Sc15g Man Series Inboard Diesel Marine Engine for Boat 280-330kwSC G series marine engine are develped by Shanghai Diesel SDEC at recent years which by appling the latest technology and combined with some CUMMINS engine designs. It design concept is to have lower noise level, saml......
Send Inquiry
Product Description

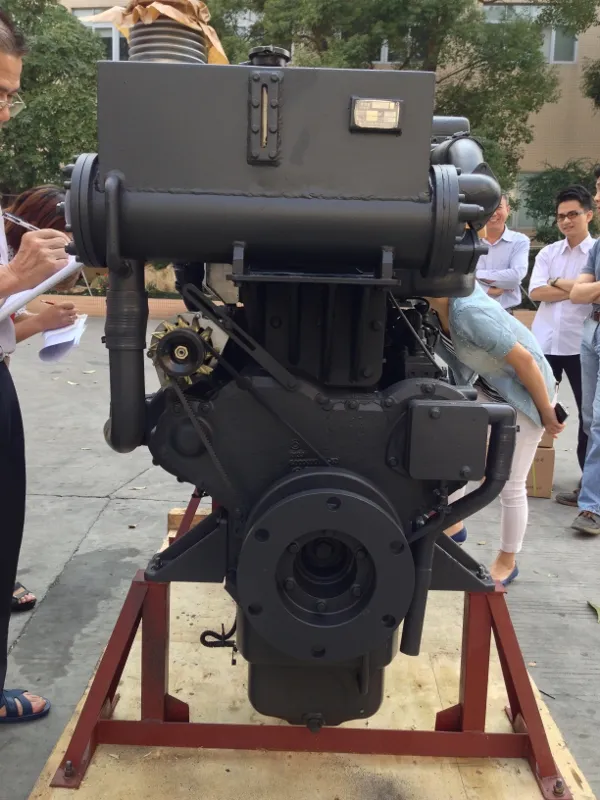

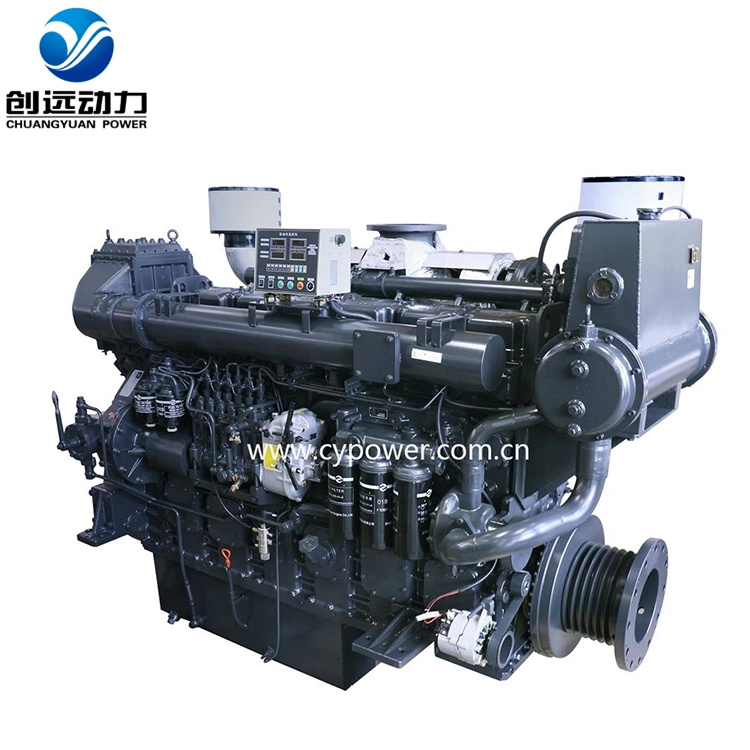

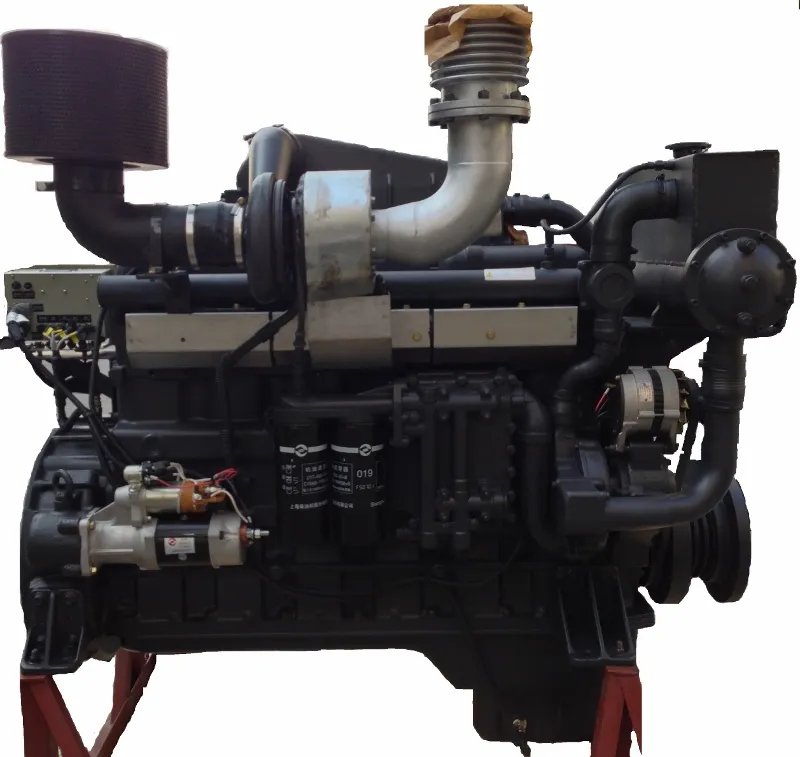

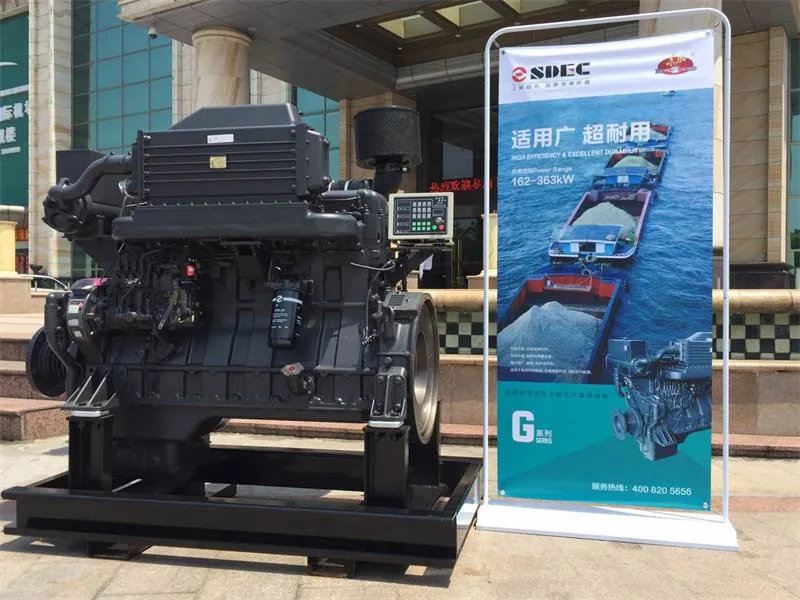

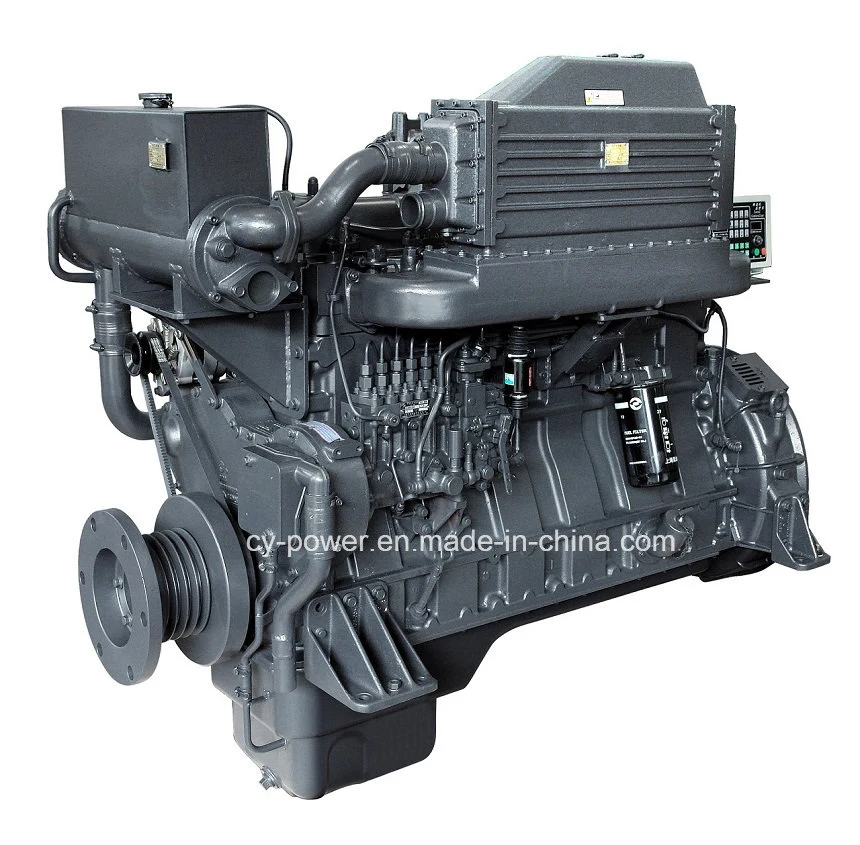

Water Cooling Sdec Sc15g Man Series Inboard Diesel Marine Engine for Boat 280-330kw
SC G series marine engine are develped by Shanghai Diesel SDEC at recent years which by appling the latest technology and combined with some CUMMINS engine designs. It design concept is to have lower noise level, samller vibration and lower fuel comsuption.It can be applied to small craft/cargo vessel propulsion and commercial vessel's Auxillary purpose.please contact us for more details or technical support.
| Engine Type | Inline-6 Cylinders, 4-Stroke Diesel Engine |
| Bore × Stroke | 135 mm × 165 mm |

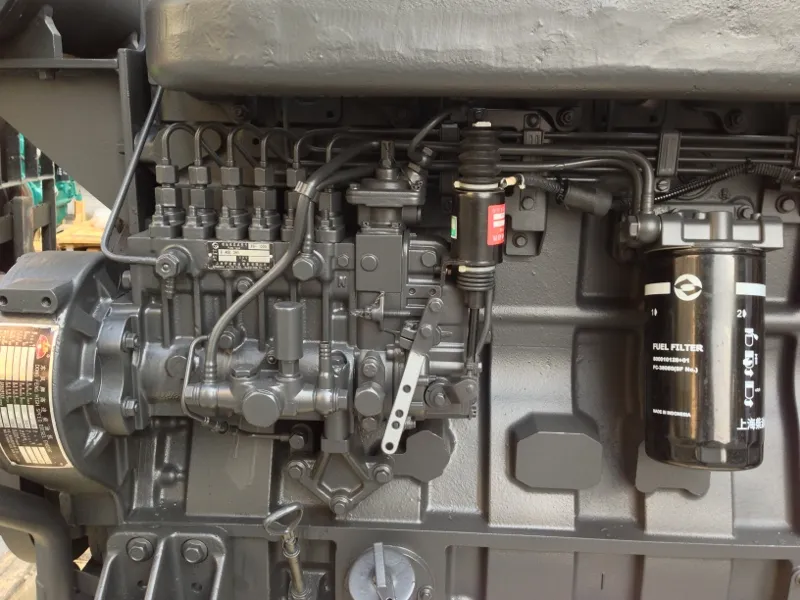

| Combustion System | Direct Injection |
| Aspiration | Turbocharged & Intercooled |
| Starting System | 24V Electrical Starter |
| Cooling System | Heat Exchanger |
| Displacement | 14.16 L |
| Rotation | Anti-clockwise Facing Flywheel |
| Size of Flywheel Housing & Flywheel | SAE 1 & 14 in. |
| Emissions | IMO II |
| Dry Mass | 1320 kg |
| Dimensions (L × W × H) | 1620 × 884 × 1540 mm |
POWER RATINGS
| Power Rating | Continuous duty | |||
| Rated RPM | 1500 | 1800 | ||
| kW | 280 | 308 | 330 | 330 |
| Fuel Oil Consumption in rated power (L/Hr) | 67.93 | 74.7 | 80.1 | 80.1 |
MARINE GEAR SPECIFICATIONS
| Gear Model | HC300 | J300 |
| Type | Hydraulic multi-disc clutch | |
| Reduction Ratio | 1.87, 2.04, 2.54, 3.0, 3.53, 4.1, 4.47 | 3.95 |
| Direction of Rotation | Clockwise or anti-clockwise from stern | |
| Dry Weight | 680 kg | 740 kg |
| Dimensions (L × W × H) | 680 × 930 × 880 mm | 786 × 930 × 864 mm |
| Mechanical Efficiency | 97% | |
STANDARD FITTINGS
| standard engine package, belt driven cast iron self-priming sea water pump , local engine monitor , Classification product certificate , EIAPP |
OPTIONAL FITTINGS
| pre-mesh type air starter set , spring starter , remote monitor , dirty oil hand pump , self-priming bronze sea water pump, water separating F.O primary filter , 2nd means of monitoring mechanical instruments , L.O & F.W pre-heater , engine stop solenoid valve , marine gear alarm system , light weight marine gear with inclined angle |
