Inboard Motor 540HP 1200rpm Diesel China Marine Engine Use for Cargo Boat
Weichai 170 series marine diesel engine (258-735KW)Product advantagesThe X170ZC series marine diesel engines (including X6170ZC series and 8170ZC series) include 6-cylinder and 8-cylinder engines developed on the basis of the original 170Z series engine, and through further design optimization and q......
Send Inquiry
Product Description

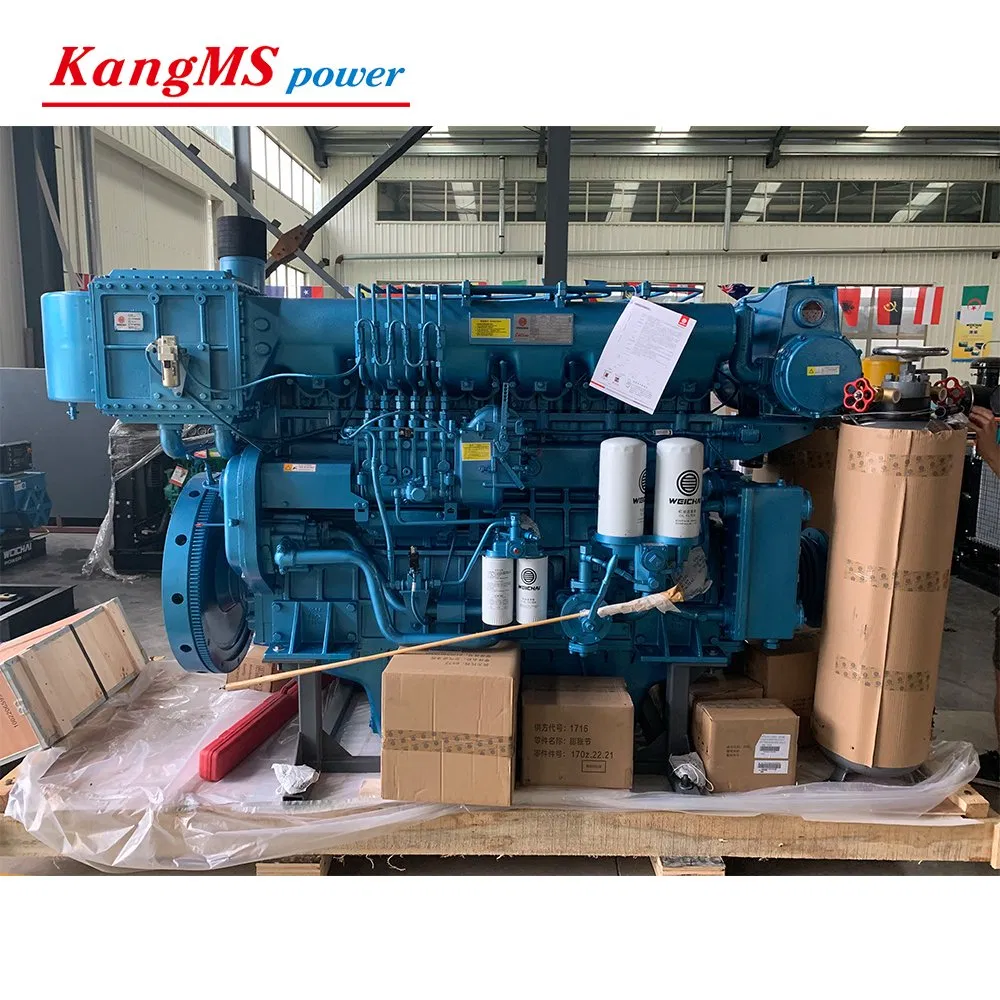

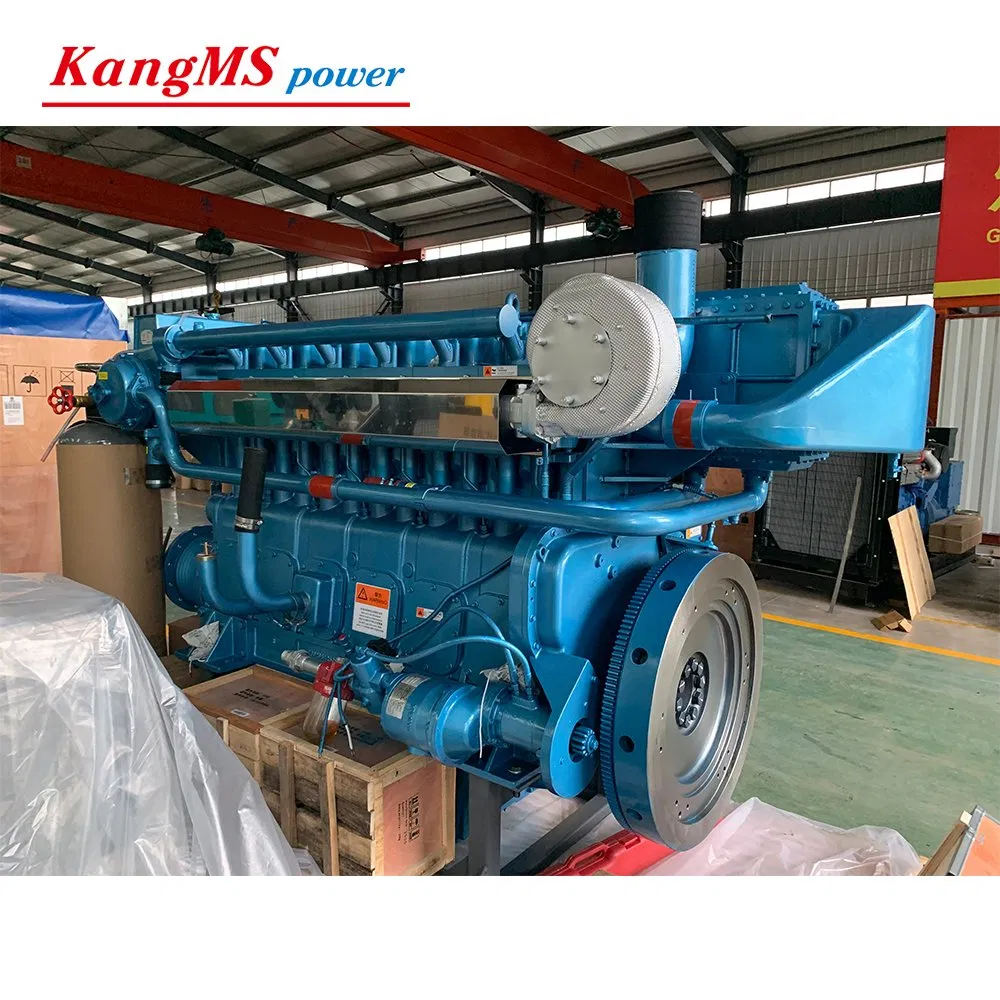

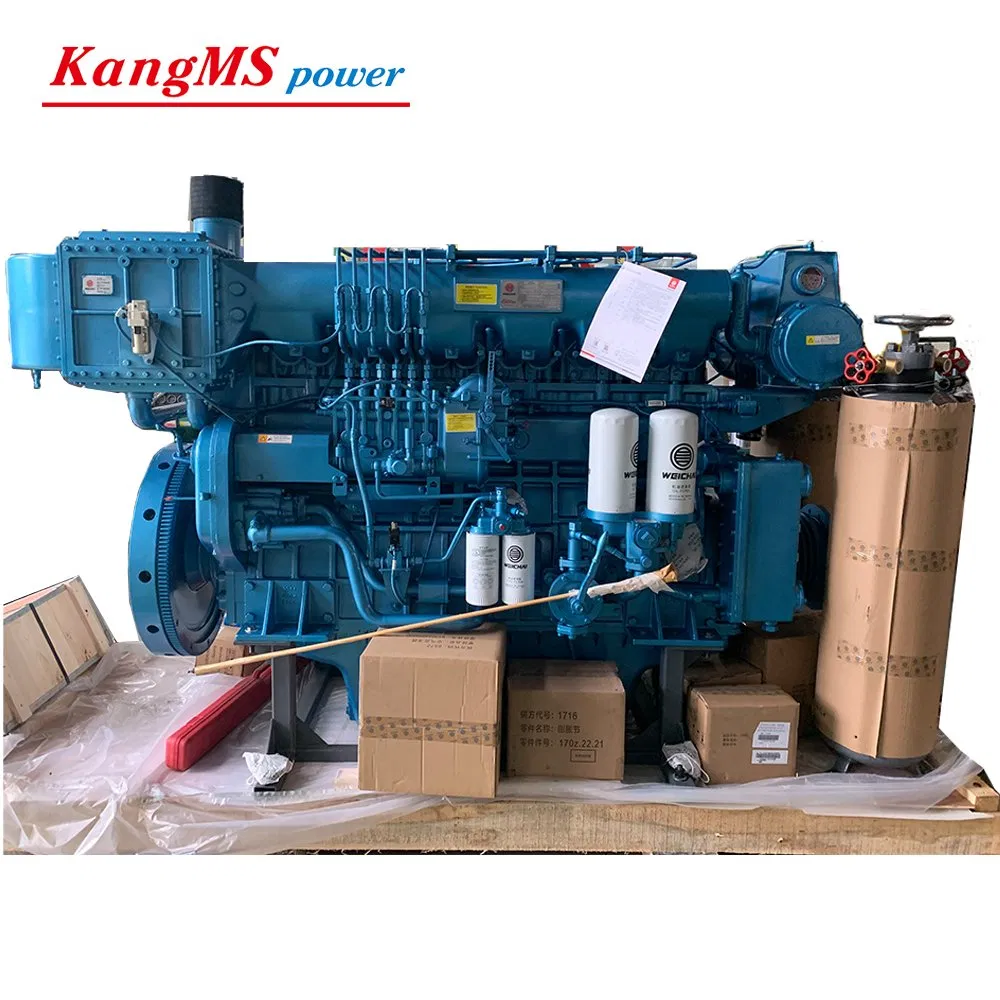

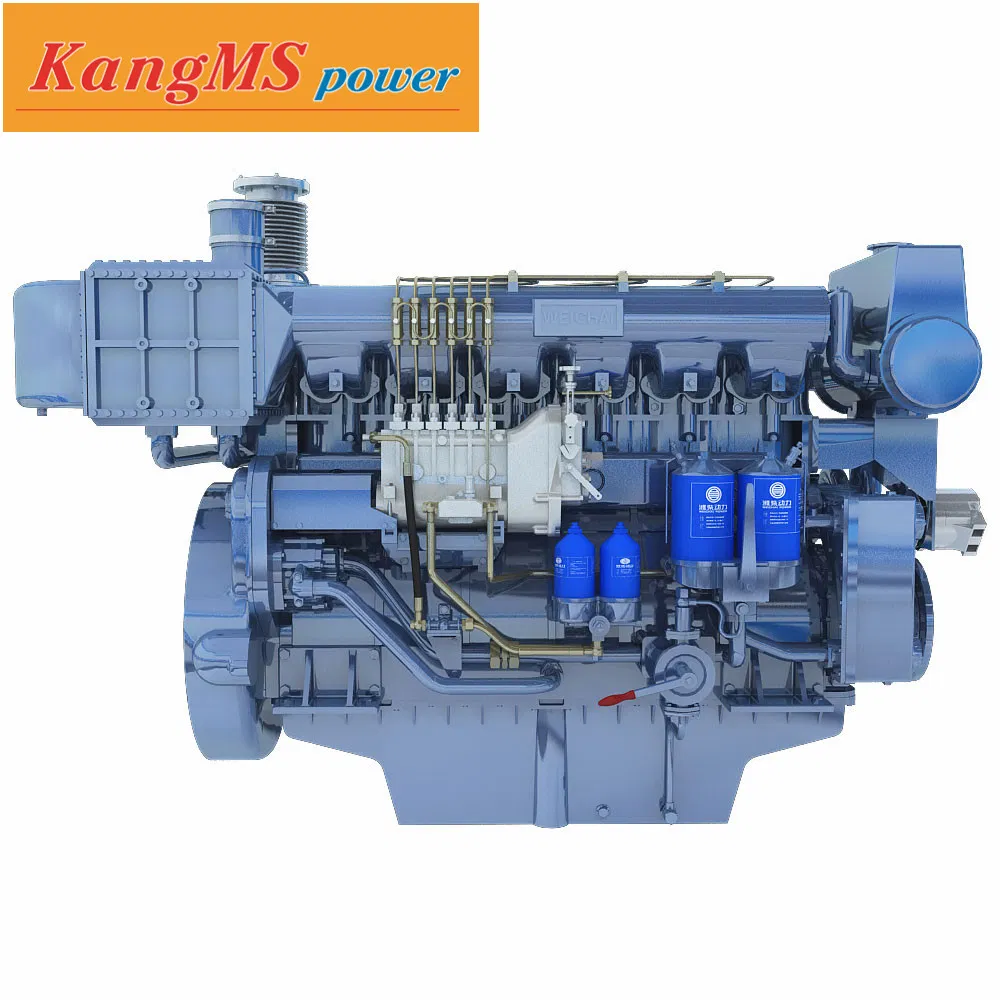

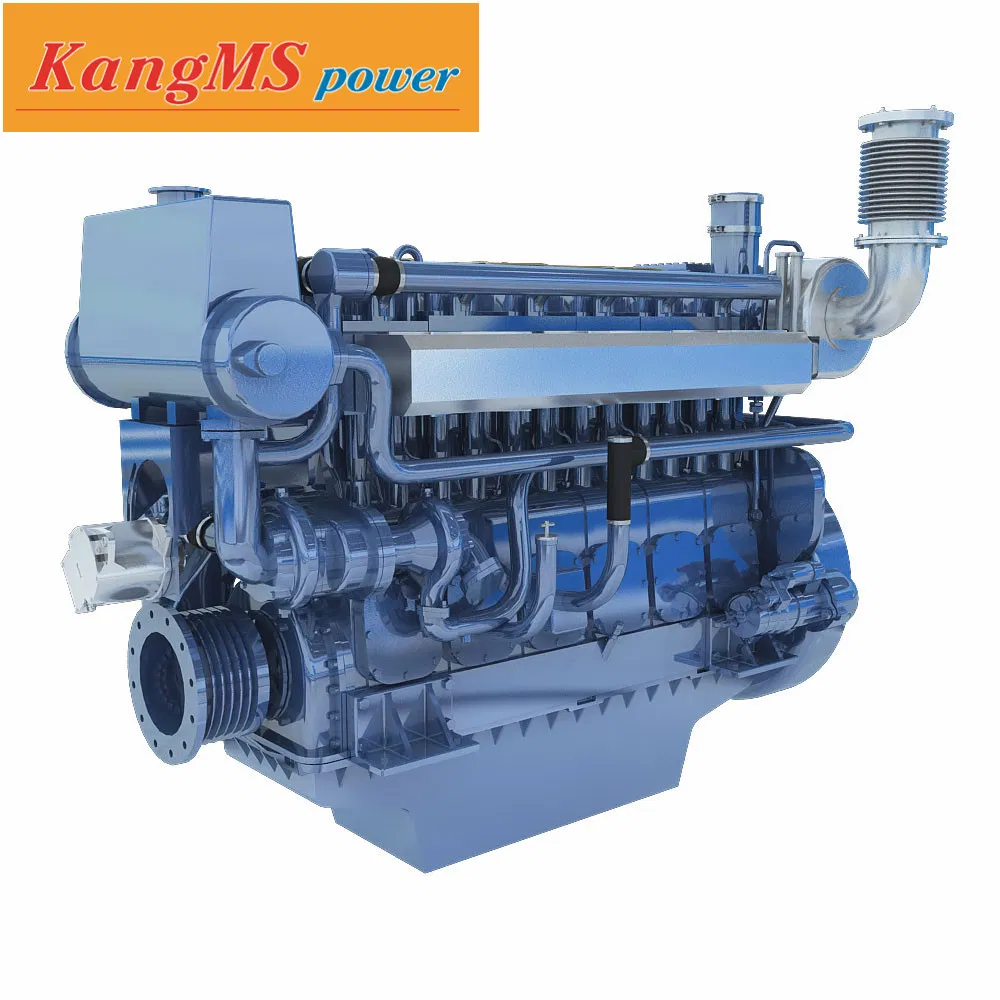

Weichai 170 series marine diesel engine (258-735KW)
Product advantages
The X170ZC series marine diesel engines (including X6170ZC series and 8170ZC series) include 6-cylinder and 8-cylinder engines developed on the basis of the original 170Z series engine, and through further design optimization and quality improvement, with the power range of 258-601kW and the speed range of 1000-1500r/min.It can be widely used in offshore and inland river fishing ships, transport ships, and engineering ships.
Product parameters
| Type | Four-stroke, water-cooled, in-line, wet cylinder liner | Number of cylinders | 6/8 |
| Bore/stroke | 170×200mm | Displacement | 27.24/36.32L |
| Minimum fuel consumption rate | 197g/kW·h | Oil consumption rate | 1.0g/kW·h |
| Starting mode | Gas/electric starting | Idle speed | 500±50r/min |
| Firing order | 1-5-3-6-2-4 (6-cylinder) 1-6-2-4-8-3-7-5(8-cylinder) | Smoke intensity | ≤1.0Rb |
| Noise | ≤116dB(A) | Rotation direction of crankshaft (Toward the free end) | Clockwise |
Product portfolio
| Model | Air intake mode | Rated power (kW/Ps) | Rotational speed (rpm) | Oil supply mode | Emission level |
| X6170ZC408-1 | Turbocharged and intercooled | 300/408 | 1000 | Mechanical pump | IMO II/China Tier I |
| X6170ZC450-1 | Turbocharged and intercooled | 330/450 | 1000 | Mechanical pump | IMO II/China Tier I |
| X6170ZC450-2 | Turbocharged and intercooled | 330/450 | 1200 | Mechanical pump | IMO II/China Tier I |
| X6170ZC480-2 | Turbocharged and intercooled | 353/480 | 1200 | Mechanical pump | IMO II/China Tier I |
| X6170ZC520-2 | Turbocharged and intercooled | 382/520 | 1200 | Mechanical pump | IMO II/China Tier I |
| X6170ZC540-2 | Turbocharged and intercooled | 397/540 | 1200 | Mechanical pump | IMO II/China Tier I |
| X6170ZC580-3 | Turbocharged and intercooled | 426/580 | 1350 | Mechanical pump | IMO II/China Tier I |
| X6170ZC608-3 | Turbocharged and intercooled | 447/608 | 1350 | Mechanical pump | IMO II/China Tier I |
| X6170ZC620-4 | Turbocharged and intercooled | 456/620 | 1500 | Mechanical pump | IMO II/China Tier I |
| 8170ZC600-1 | Turbocharged and intercooled | 441/600 | 1000 | Mechanical pump | IMO II/China Tier I |
| 8170ZC720-2 | Turbocharged and intercooled | 530/720 | 1200 | Mechanical pump | IMO II/China Tier I |
| 8170ZC818-3 | Turbocharged and intercooled | 601/818 | 1350 | Mechanical pump | IMO II/China Tier I |
Product Features
- Strong power: Such components as turbocharger, high-pressure fuel pump and fuel injector are optimally configured to obtain wide power range, sufficient power reserve, and large torque. Hence, the engine has large torque even at low speed, and is better adaptive to various operating conditions.
- Fuel economy: It uses four-valve technology, and is provided with a pulse conversion turbocharger to make possible the more sufficient combustion, low fuel consumption, and wider operating range at low fuel consumption, and through the optimization of various engine oil seals, reduce the engine oil consumption by 45%.
- Safe and reliable: The high-strength QT800 one-piece crankshaft, large flow lubrication system with a filtering and cooling function, and high-efficiency cooling system, and less-pipe and one-cylinder and one-head design ensure reliable operation and convenient maintenance of the diesel.
| Standard Equipments Engine and block Cast iron gantry type structure block One-piece casting crankshaft Separate cast iron cylinder heads and wet liners Aluminium alloy pistons with gallery oil cooling Cooling system Fresh / raw water heat exchanger with integrated thermostatic valves and expansion tank Cast iron centrifugal fresh water pump, mechanically driven Self-priming raw water pump, mechanically driven Lubrication system Filter with metal element, washable Fresh water cooled lube oil cooler | Fuel system P-type in-line injection pump Dual-skinned fuel pipe with alarm and leakage collector Duplex fuel filters replaceable engine running Intake air and exhaust system Washable air filter Turbocharger optimized for marine application Insulated exhaust manifold and exhaust expansion joint Electrical system 24V electric starter motor and battery charging alternator Voyage safeguard monitor and 5m harness Certification CCS and EIAPP |
| Power definition Standard ISO 3046/1 -1995(F) Reference conditions Ambiant temperature 25 °C Barometric pressure 100 kPa Relative humidity 30% Raw water temperature 25 °C Fuel oil Relative density 0,840 ± 0,005 Lower calorific power 42 700 kJ/kg Consumption tolerances ± 5 % Lube oil Recommend grade CD 15W/40 |
Warm prompt
Production cycle: 21 working days.
Mode of transport: By seaTerms of payment: 30% down payment, balance settled before delivery.
Packing method: Non-fumigated wood export packing.
Delivery time: 5 working days after receipt of full payment.
Warranty period: One year warranty. If the problem is not caused by human, it can be repaired at the nearest overseas service station. After the warranty period, by virtue of the purchase contract, enjoy more preferential parts service.
Certifications
Enterprise and product certification.
ISO9001, TUV, CE, CCS, LR, GL, DNV, BV, ABS, NK, RS, RINA, KR
The delivery moment
We have closely related transportation companies, engineering logistics, containers, air freight, international railways. International ground transportation.
There are many ways to choose, and the shipping cost is even lower. Timeliness is higher.

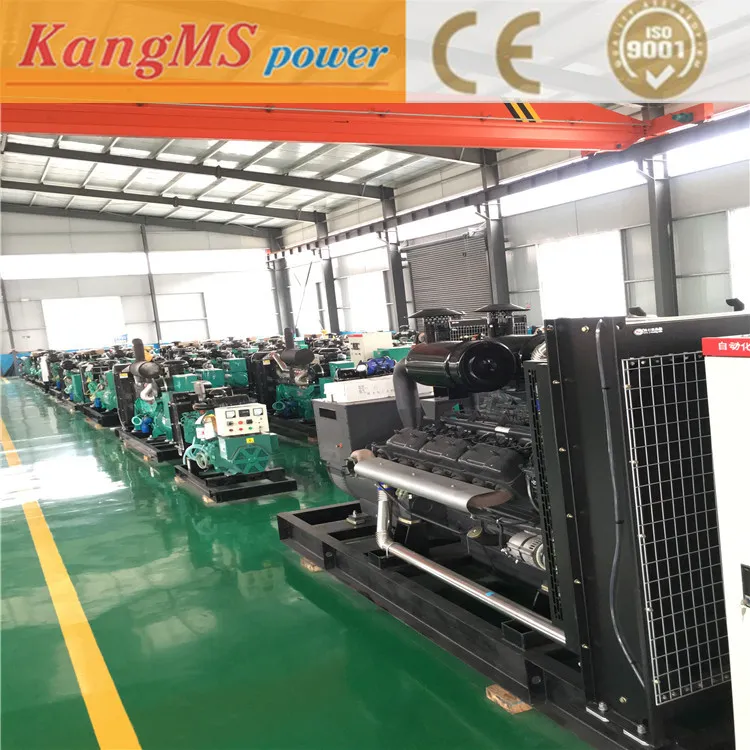

Our Company
Shandong Cummins Power Technology Co., Ltd.
Is located in Weifang City, Shandong Province. The KangMS POWER brand of the company has become a well-known brand that has successfully operated in the field of power generation equipment.
Unified R & D and dedicated production
The R & D team at the Shandong headquarters formulates unified technical specifications and production processes based on advanced technology and innovative concepts. The production plant in Weifang, China, through strict international management systems and standard production processes, manufactures high-quality KangMS POWER power generation equipment.
Unified research and development of high-quality production
The R & D and production team at Shandong headquarters, power generation equipment and related ancillary products are tailored to the needs of our customers with the purpose of durability and high reliability. Related products have been well received by customers at home and abroad.
Global sales and service network
Shandong Cummins Power Technology Co., Ltd. Has always focused on providing Kans Ms POWER power system quality products and services to customers at home and abroad. The excellent performance of Shandong Cummins Power Technology Co., Ltd. Can be seen in industries and projects such as highways, railways, post and telecommunications, water conservancy, airports, factories and mines, and high-rise buildings.
The company has increased its efforts to extend the industry horizontally and vertically. Not only has it vigorously developed "gas generator sets and system engineering, heavy oil power station construction, marine diesel generator sets, ship mainframes and oil supply systems", and has provided fuel and gas power generation system technology and The full-service of the equipment also focuses on the field of new energy. In the research, development and application of new energy and high-efficiency energy-saving technologies and products, it has created new and characteristic industries, covering the efficient use of solar energy and the integration of biomass energy. Utilization and biogas projects, industrial waste gas, waste heat recovery and utilization, biogas, natural gas, coal bed gas, oilfield associated gas generation and other industrial development of power generation and engineering applications.
The company adapts to the new situation, comprehensively enhances the comprehensive competitiveness of the enterprise, and consistently implements and implements the whole process and all-round of enterprise management, and puts people-oriented, harmonious concepts and modern enterprise management systems in order to standardize and improve the internal management of enterprises. With the development needs of the enterprise, a high-tech, large-scale and strong group company has continuously demonstrated its unique charm and style, and continues to win customers by quality, base itself on the market with credibility, reward society with value, and gallop the future with strength. Go hand in hand with all sectors of society to create brilliant!
