High Quality Marine Engine Original From Weichai with Gearbox
Weichai WP4/WP6 Marine Diesel Engine (60KW-168kW)Weichai wp4 / wp6 series diesel engine is my company on the basis of digesting and absorbing foreign advanced technology, according to the requirements of relevant national standards and ship rules through combustion system of diesel engine, the exhau......
Send Inquiry
Product Description

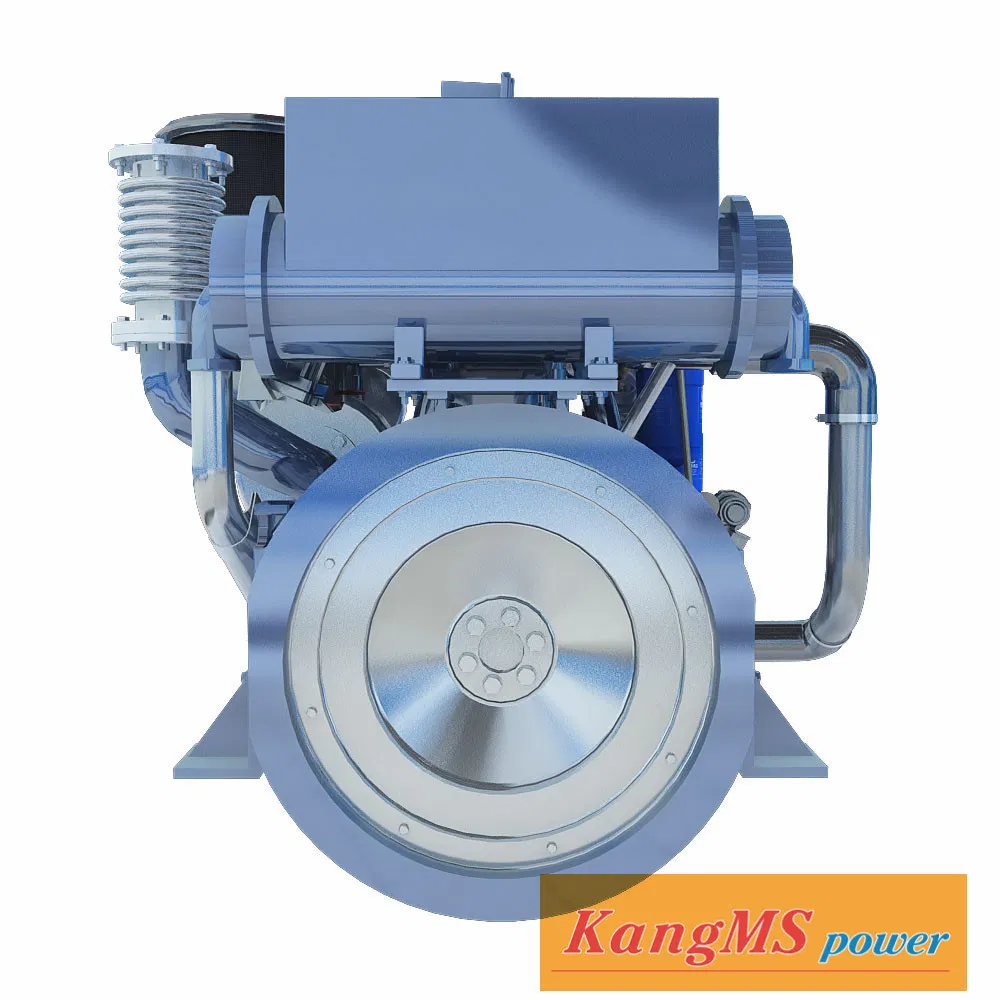

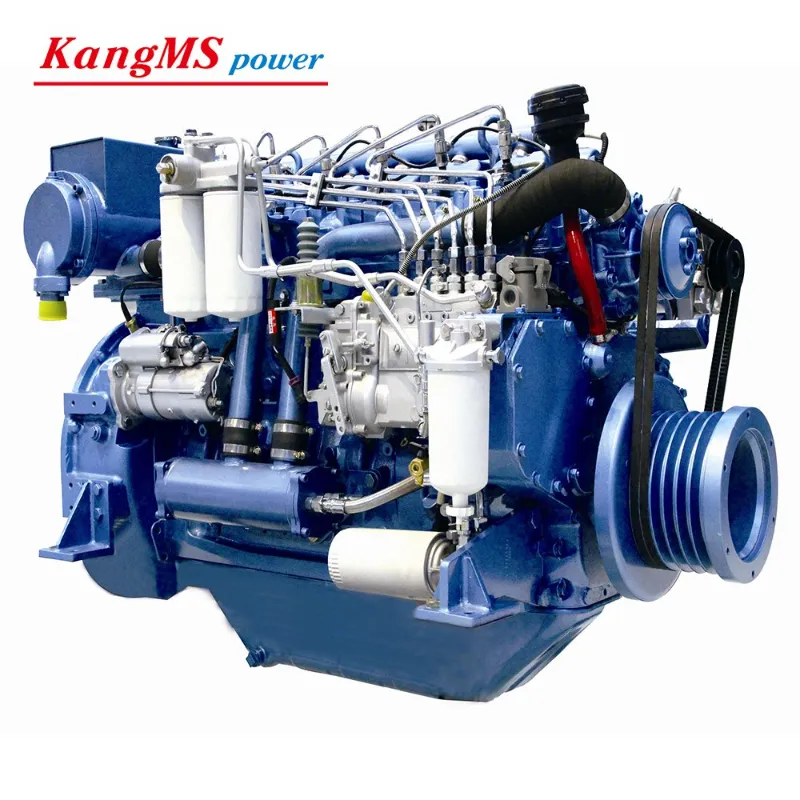

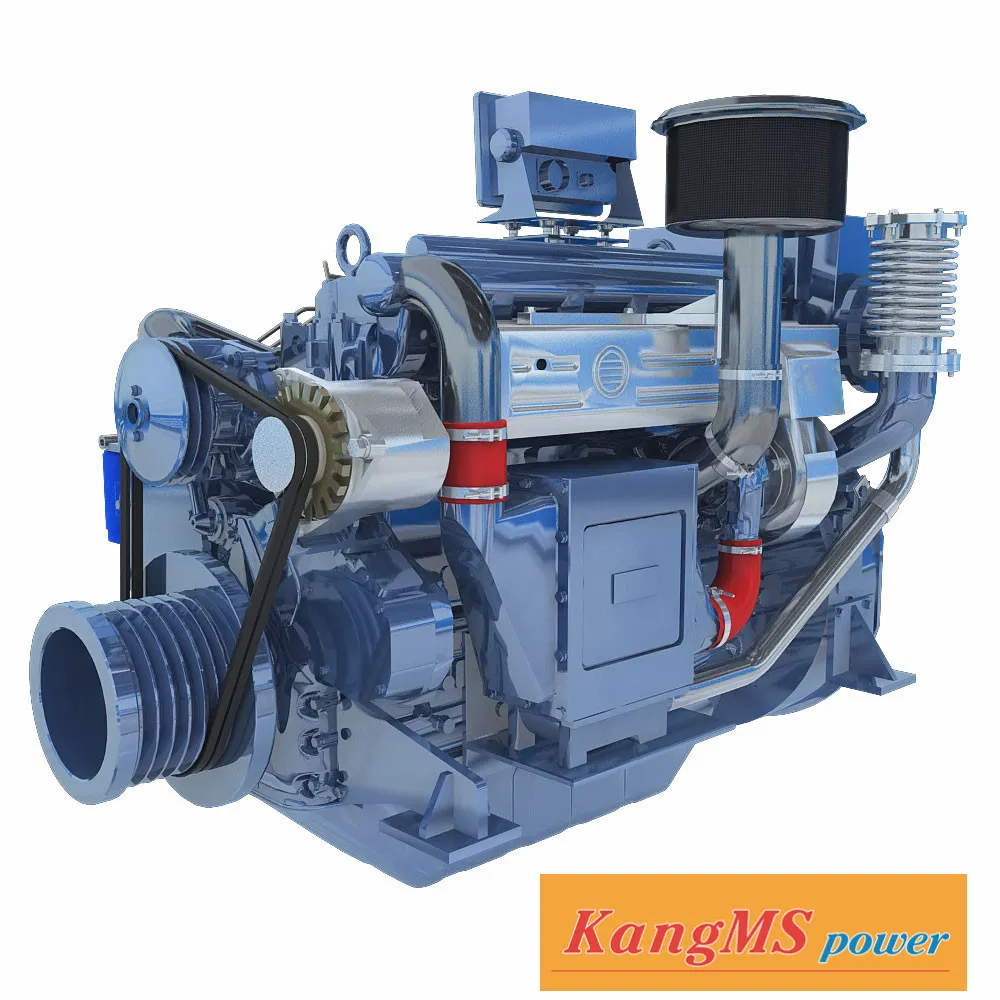

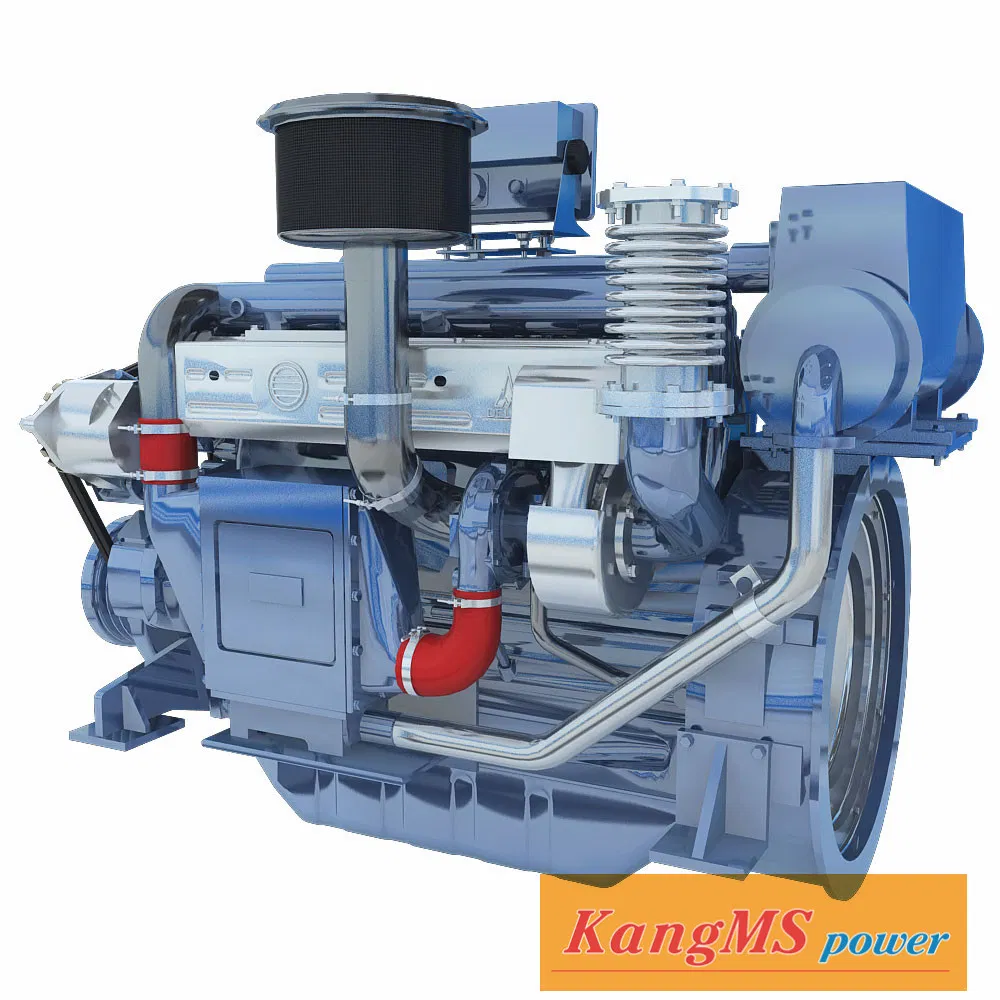

Weichai WP4/WP6 Marine Diesel Engine (60KW-168kW)
Weichai wp4 / wp6 series diesel engine is my company on the basis of digesting and absorbing foreign advanced technology, according to the requirements of relevant national standards and ship rules through combustion system of diesel engine, the exhaust system, cooling system, power output system, diesel engine monitoring system and the variant characteristics of Marine diesel engine used to improve the diesel engine.
. With a wide range of power speed, small size, light weight, compact structure, use
The power range is 60KW-168KW and the speed range is 1500-2500rpm.
| Type | Four-stroke, water cooled, in-line, turbocharged/turbocharged and intercooled | Number of cylinders | 6 |
| Cylinder Bore/stroke | 105×130(mm) | Displacement | 6.75L |
| Oil consumption rate | ≤0.2g/kW·h | Noise | ≤98dB(A) |
| Minimum fuel consumption rate | 212g/kW·h | Idle speed | 650±30r/min |
| Torque reserve | 20-35% | Rotation direction of crankshaft (facing the flywheel end) | Counter-clockwise |
Dimensions Length × Width × Height/net weight | Turbocharged 1360×890×1054(mm) 700kg Turbocharged and intercooled 1360×890×1054(mm) 750kg | ||
Product parameters
| Series | Model | Air intake mode | Rated power kW/Ps | Speed r/min | Fuel feeding mode | Emission level | Power classification |
| WP6 | WP6C140-23 | Turbocharged | 103/140 | 2300 | Mechanical pump | - | P1 |
| WP6C142-18 | Turbocharged | 105/142 | 1800 | Mechanical pump | - | P1 | |
| WP6C156-21 | Turbocharged | 115/156 | 2100 | Mechanical pump | - | P1 | |
| WP6C163-23 | Turbocharged | 120/163 | 2300 | Mechanical pump | - | P1 | |
| WP6C150-15 | Turbocharged and intercooled | 110/150 | 1500 | Mechanical pump | - | P1 | |
| WP6C165-18 | Turbocharged and intercooled | 122/165 | 1800 | Mechanical pump | - | P1 | |
| WP6C185-21 | Turbocharged and intercooled | 136/185 | 2100 | Mechanical pump | IMO | P1 | |
| WP6C220-23 | Turbocharged and intercooled | 162/220 | 2300 | Mechanical pump | IMO | P1 | |
| WP6C250-23 | Turbocharged and intercooled | 168/228 | 2230 | Mechanical pump | IMO | P3 |
Product Features
- Strong power: Due to large power reserve of the engine, the ship is able to accelerate rapidly and run at high speed, so the engine is suitable for high speed ships and heavy duty fishing boats.
- Fuel economy: The well-designed intake and fuel supply system widens the operating range of the diesel engine; it is able to maintain low fuel consumption in normal operating conditions and speed range of the marine engine.
- Strong practicality: The unique Yuanhangbao monitoring system is able to monitor the speed, water temperature, oil temperature and pressure and other data of the diesel engine in a real-time manner, and in case that the diesel engine parameters exceed the limit, an automatic alarm is triggered and the engine is shut down; the wind/wave mode is added to ensure that the ship is not shut down at critical moment.
Standard Equipment
Engine and block Cast iron frame style body structure One-piece forged crankshaft Separate cast iron cylinder heads and dry liners Aluminium alloy pistons with gallery oil cooling Cooling system Fresh / raw water heat exchanger with integrated thermostatic valves and expansion tank Cast iron centrifugal fresh water pump, mechanically driven Self-priming raw water pump, mechanically driven Lubrication system Full flow duplex type oil filters replaceable engine running Fresh water cooled lube oil cooler plate type | Fuel system P type in line injection pump Dual-skinned fuel pipe with alarm and leakage collector Duplex fuel filters replaceable engine running Water separated filter Intake air and exhaust system Washable air filter & exhaust expansion joint Insulated dry type or water jacket exhaust manifold Electrical system 24V electric starter motor and battery charging alternator Voyage safeguard monitor and 5m harness Flywheel and housin SAE1 flywheel housing and SAE 14 flywheel Certification CCS and EIAPP |
Power definition Standard ISO 3046/1 -1995(F) Reference conditions Ambiant temperature 25 °C Barometric pressure 100 kPa Relative humidity 30% Raw water temperature 25 °C | Fuel Relative density 0,840 ± 0,005 Lower calorific power 42 700 kJ/kg Consumption tolerances ± 5 % Lube oil Recommend grade CF-4 15W/40 |
Production cycle: 21 working days.
Mode of transport: by seaTerms of payment: 30% down payment, balance settled before delivery.
Packing method: non-fumigated wood export packing.
Delivery time: 5 working days after receipt of full payment.
Warranty period: one year warranty. If the problem is not caused by human, it can be repaired at the nearest overseas service station.After the warranty period, by virtue of the purchase contract, enjoy more preferential parts service.

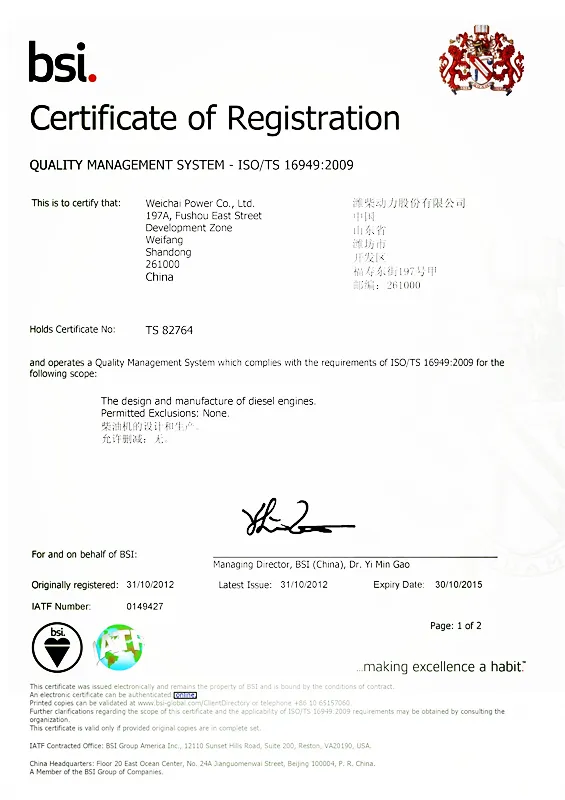

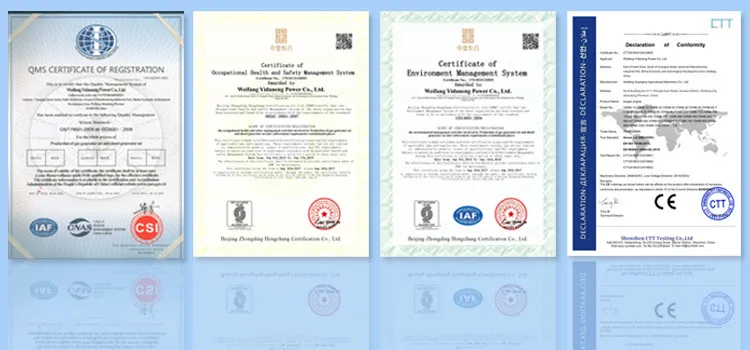

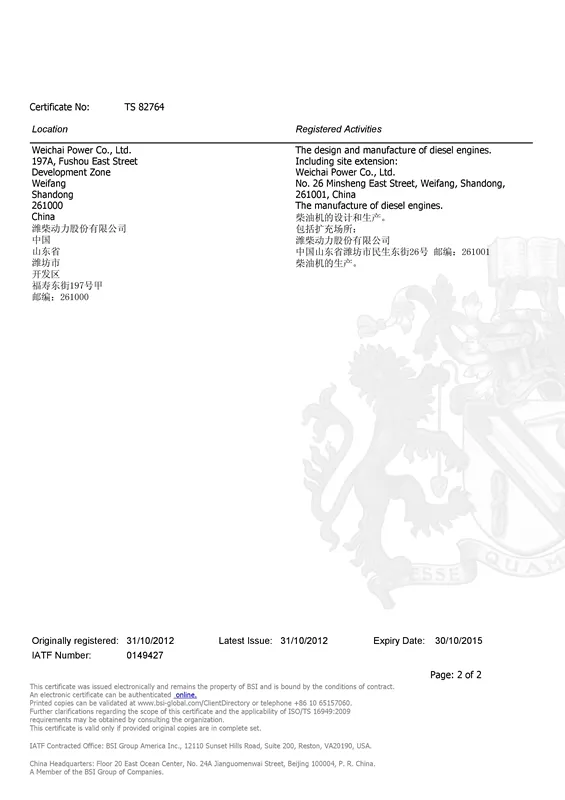

Certifications
Enterprise and product certification.
ISO9001 ,TUV ,CE , CCS , LR, GL, DNV , BV ,ABS, NK, RS,RINA ,KR
The delivery moment
We have closely related transportation companies, engineering logistics, containers, air freight, international railways. International ground transportation.
There are many ways to choose, and the shipping cost is even lower. Timeliness is higher.

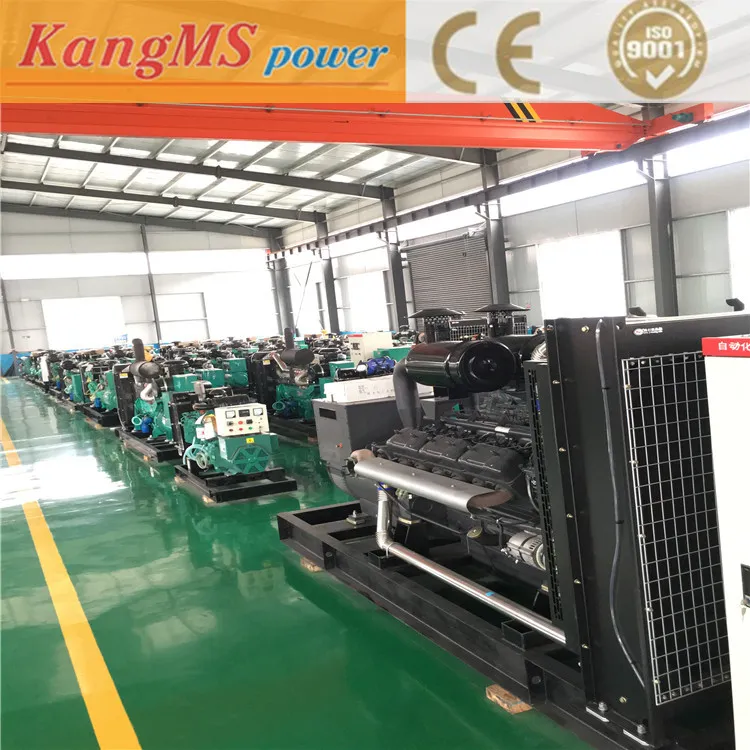

Our Company
Shandong Cummins Power Technology Co., Ltd. is located in Weifang City, Shandong Province. The KangMS POWER brand of the company has become a well-known brand that has successfully operated in the field of power generation equipment.
Unified R & D and dedicated production
The R & D team at the Shandong headquarters formulates unified technical specifications and production processes based on advanced technology and innovative concepts. The production plant in Weifang, China, through strict international management systems and standard production processes, manufactures high-quality KangMS POWER power generation equipment .
Unified research and development of high-quality production
The R & D and production team at Shandong headquarters, power generation equipment and related ancillary products are tailored to the needs of our customers with the purpose of durability and high reliability. Related products have been well received by customers at home and abroad.
Global sales and service network
Shandong Cummins Power Technology Co., Ltd. has always focused on providing Kans Ms POWER power system quality products and services to customers at home and abroad. The excellent performance of Shandong Cummins Power Technology Co., Ltd. can be seen in industries and projects such as highways, railways, post and telecommunications, water conservancy, airports, factories and mines, and high-rise buildings.
The company has increased its efforts to extend the industry horizontally and vertically. Not only has it vigorously developed "gas generator sets and system engineering, heavy oil power station construction, marine diesel generator sets, ship mainframes and oil supply systems", and has provided fuel and gas power generation system technology and The full-service of the equipment also focuses on the field of new energy. In the research, development and application of new energy and high-efficiency energy-saving technologies and products, it has created new and characteristic industries, covering the efficient use of solar energy and the integration of biomass energy. Utilization and biogas projects, industrial waste gas, waste heat recovery and utilization, biogas, natural gas, coal bed gas, oilfield associated gas generation and other industrial development of power generation and engineering applications.
The company adapts to the new situation, comprehensively enhances the comprehensive competitiveness of the enterprise, and consistently implements and implements the whole process and all-round of enterprise management, and puts people-oriented, harmonious concepts and modern enterprise management systems in order to standardize and improve the internal management of enterprises. With the development needs of the enterprise, a high-tech, large-scale and strong group company has continuously demonstrated its unique charm and style, and continues to win customers by quality, base itself on the market with credibility, reward society with value, and gallop the future with strength. Go hand in hand with all sectors of society to create brilliant!
