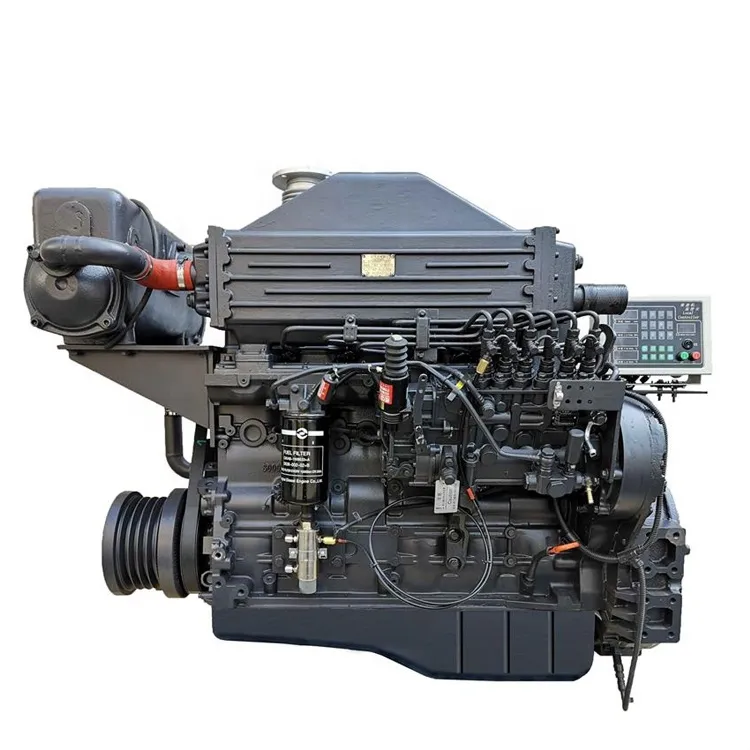

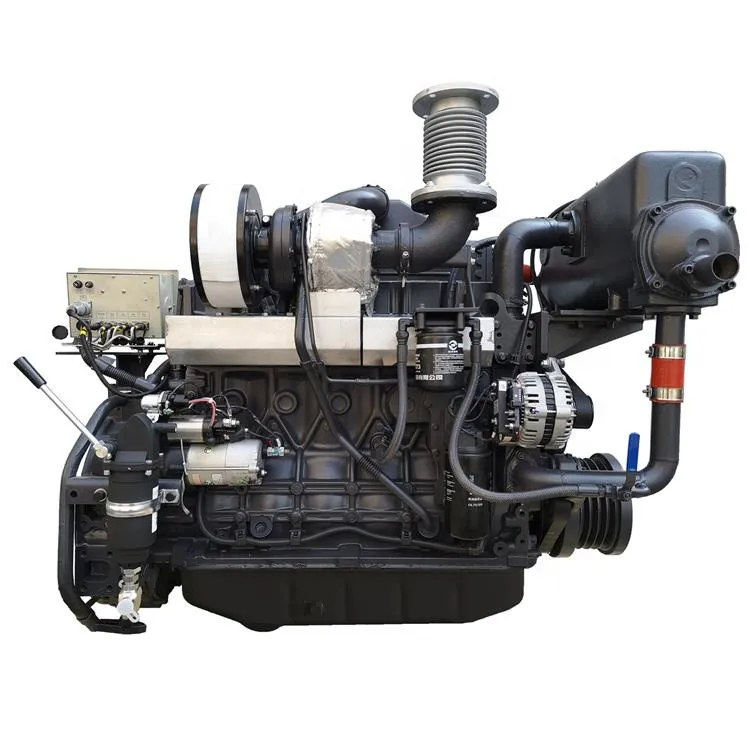

              Boat Dhip Inboard Marine Diesel Engine Moteur Propulsion Integration
              • Boat Dhip Inboard Marine Diesel Engine Moteur Propulsion IntegrationBoat Dhip Inboard Marine Diesel Engine Moteur Propulsion Integration
              • Boat Dhip Inboard Marine Diesel Engine Moteur Propulsion IntegrationBoat Dhip Inboard Marine Diesel Engine Moteur Propulsion Integration
              • Boat Dhip Inboard Marine Diesel Engine Moteur Propulsion IntegrationBoat Dhip Inboard Marine Diesel Engine Moteur Propulsion Integration
              • Boat Dhip Inboard Marine Diesel Engine Moteur Propulsion IntegrationBoat Dhip Inboard Marine Diesel Engine Moteur Propulsion Integration

              Boat Dhip Inboard Marine Diesel Engine Moteur Propulsion Integration

              Products DescriptionEngine Specifications:Engine ModelSC7H235CA2MakerShangHai diesel engine Co.,LtdRated power155kwRated speed2100rpmEngine TypeInline-6 Cylinders,4-stroke Diesel engineBore x Stroke105mm x 124mmCombustion systemDirect InjectionAspirationTurbocharged & IntercooledCylinder Number6......

              Send Inquiry

              Product Description

              Products Description
              Boat Dhip Inboard Marine Diesel Engine Moteur Propulsion Integration
              Engine Specifications:
              Engine Model
              SC7H235CA2
              Maker
              ShangHai diesel engine Co.,Ltd
              Rated power
              155kw
              Rated speed
              2100rpm
              Engine Type
              Inline-6 Cylinders,4-stroke Diesel engine
              Bore x Stroke
              105mm x 124mm
              Combustion system
              Direct Injection
              Aspiration
              Turbocharged & Intercooled
              Cylinder Number
              6
              Cooling System
              Heat Exchanger
              Displacement
              6.44L
              Rotation
              Anti-clockwise (facing Flywheel)
              Size of Flywheel Housing &Flywheel
              SAE3#11 1/2 in
              Certification&Emissions
              CCS+IMO Tier II
              Dry Weight
              675kg
              Dimension(L x W x H)
              1266 x 729 x 1179mm
              Series Model:
              Engine Model
              Rated Power/Speed
              (kw/r/min)
              Overload Power/Speed
              (kw/r/min)
              UNA Rated power/speed
              (kw/r/min)
              UNA Overload Power/Speed
              (kw/r/min)
              SC7H175CA2
              115kw/1500rpm
              127kw/1545rpm
              112kw/1500rpm
              123kw/1545rpm
              SC7H195CA2
              129kw/1500rpm
              142kw/1545rpm
              125kw/1500rpm
              138kw/1545rpm
              SC7H190CA2
              125kw/1800rpm
              137kw/1854rpm
              121kw/1800rpm
              133kw/1854rpm
              SC7H220CA2
              144kw/1800rpm
              159kw/1854rpm
              140kw/1800rpm
              154kw/1854rpm
              SC7H235CA2
              155kw/2100rpm
              170kw/2163rpm
              150kw/2100rpm
              165kw/2163rpm
              SC7H250CA2
              167kw/2300rpm
              184kw/2369rpm
              162kw/2300rpm
              178kw/2369rpm
              SC7H230CF2
              154kw/1500rpm
              170kw/1500rpm
              149kw/1500rpm
              164kw/1500rpm
              SC7H250CF2
              168kw/1500rpm
              185kw/1500rpm
              163kw/1500rpm
              179kw/1500rpm
              Marine Gear Specification:
              Gear Model
              120C
              HC138
              Type
              Hydraulic multi-disc clutch

              Reduction Ratio
              1.94,2.45
              2.00,3.00,3.57,4.05,4.45
              Direction of Rotation
              Clockwise or anti-clockwise from stern

              Dry weight
              225kg
              360kg
              Dimension(L x W x H)
              432 x 440 x 650mm
              520x 792x 760mm
              Mechanical Efficiency
              97%

              Boat Dhip Inboard Marine Diesel Engine Moteur Propulsion Integration
              Boat Dhip Inboard Marine Diesel Engine Moteur Propulsion Integration
              Company Profile
              Boat Dhip Inboard Marine Diesel Engine Moteur Propulsion Integration
              Our Advantages
              Boat Dhip Inboard Marine Diesel Engine Moteur Propulsion Integration
