Product Description

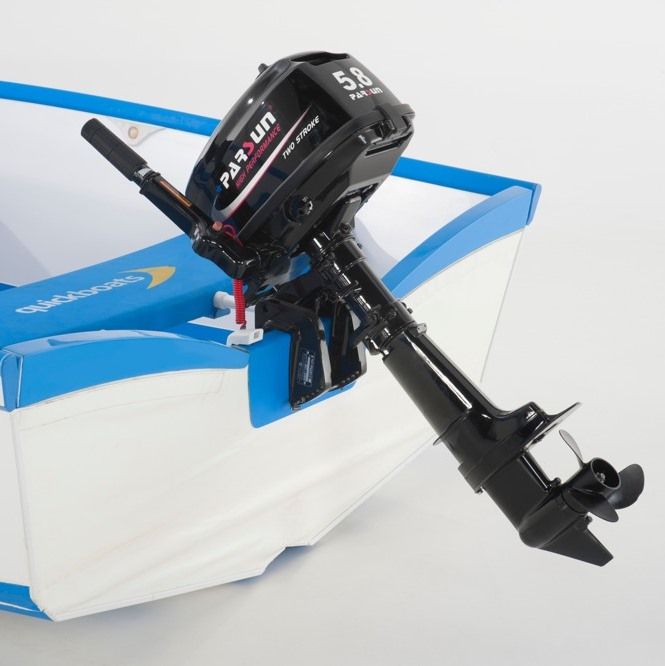

Parsun 5.8HP two stroke outboard motor
2 stroke outboard model features:
High grade marine aluminum alloy for ultimate corrosion protection
Tilt & trim with shallow water drive various positions
Twist grip throttle control for easy maneuverability & safety
Thermostat controlled water cooling system
Safety lanyard with emergency shutoff
Easy forward-neutral-reverse gear shifting
Vibration reduction system for smooth performance
Adjustable steering friction for easier maneuverability
Innovative large recoil wheel assists easy starting
Quiet, through the propeller hub exhaust

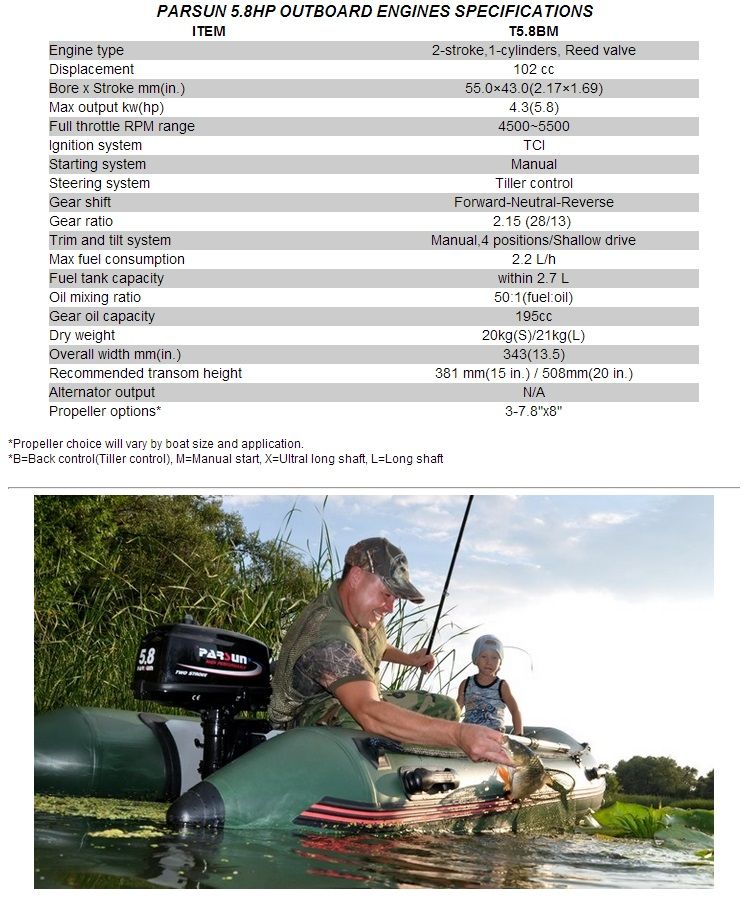

| Model | Unit | T5.8BMS | T5.8BML | |
| Item | ||||
| Overall length | mm(in.) | 700 ( 27.6 ) | ||
| Overall width | mm(in.) | 343 ( 13.5 ) | ||
| Overall height | mm(in.) | 1014 ( 39.9 ) | 1141 ( 44.9 ) | |
| Transom height | mm(in.) | 381(15) | 508(20) | |
| Weight | Kg | 20 | 21 | |
| Full throttle operating range | r/min | 4500-5500 | ||
| Maximum output | Kw (HP)@r/min | 4.3( 5.8)@5000 | ||
| Idling speed (Neutral) | r/min | 1000-1100 | ||
| Engine type | Reed Valve | |||
| Cylinders | 1 | |||
| Displacement | cm 3 | 102 | ||
| Bore ×stroke | mm(in) | 55×43 (2.17×1.69) | ||
| Ignition system | CDI | |||
| Control system | Tiller control | |||
| Starting system | Manual start | |||
| Gear positions | Forward-Neutral-Reverse | |||
| Gear ratio | 2.08 (27/13) | |||
| Trim and tilt system | Manual tilt | |||
| Fuel tank capacity | Within 2.7 | |||
| Maximum fuel waste | L /h | 3.1 | ||
| Mixing ratio | Fuel:Oil | 50:1 | ||
| Gear oil capacity | cm 3 | 195 | ||
| Propeller options* | in | 3-7.8" x 8.0" | ||
