Product Description

Well perform in 20000hours reliability test andthe most demanding requirements on temperature compact and metal fatigue
World-class foundry and machining factory guarantee the excellent quality and reliability of our major components
Alloy cast iron engine block, forged steel crankshaft and high-strength alloy connecting rod increase strength and rigidity
The improvement of piston cooling system reduces the piston temperature and oil consumption
High efficient 4-valve, P fuel pump & P injector, postposition gear chamber and point-line gear meshing patent technology improve combustion, noise level, vibration and fuel consumption
Water cooling exhaust pipe reduces engine room temperature
Provide dual starting methods for choosing (electric and pneumatic)

Engine model: YC6T480C
Configuration: Vertical, in line, 6 cylinder, water-cooled, 4 stroke
Bore*Stroke: 145*165mm
Displacement: 16.35L
Compression ratio: 15.5 : 1
Fuel consumption: 195g/kw.h
Oil consumption: 1.0 g/kw.h
Rotation: Anticlockwise ( facing flywheel)
Dry weight: 1980kg
Size: 1880*1000*1860mm

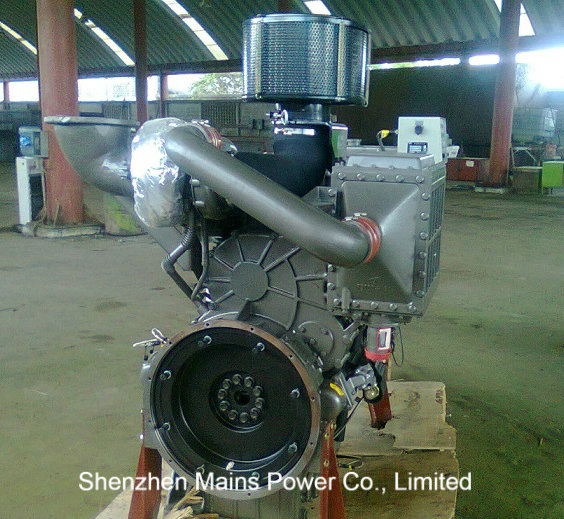

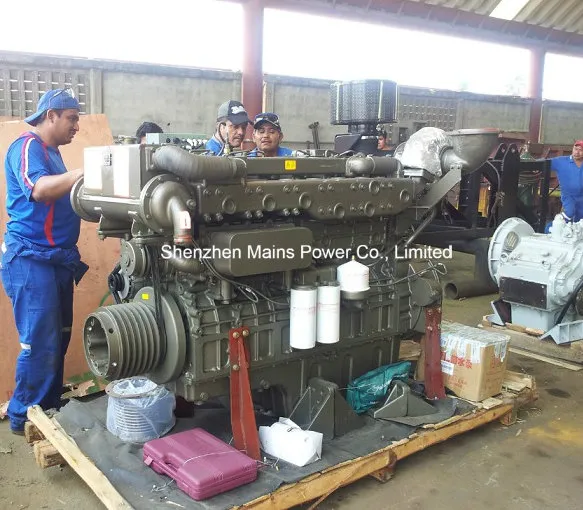

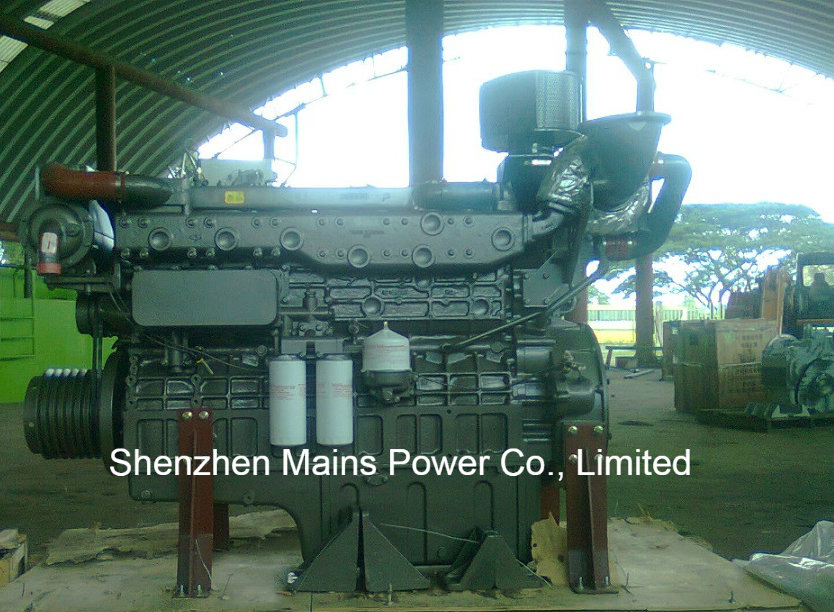

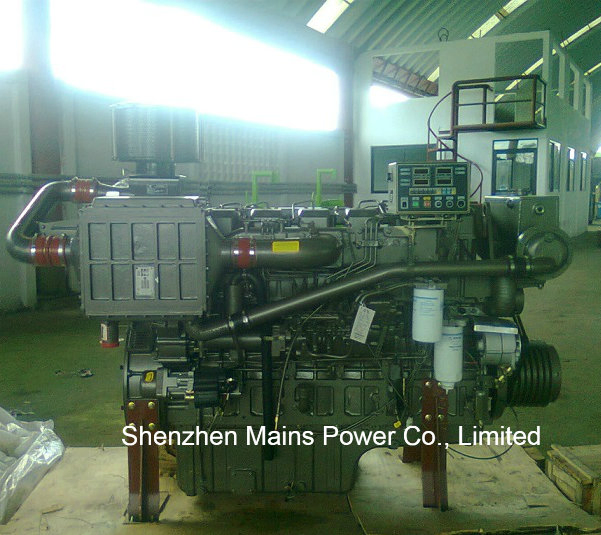

480HP Yuchai Marine Diesel Engine Fishing Boat Motor Boat Engine

480HP Yuchai Marine Diesel Engine Fishing Boat Motor Boat Engine

Yuchai Marine Diesel Engine Model List
Engine model		Rated			Max		*Cylinder-BoreStroke**	Disp (L)	Weight (kg)	Dimension (LWH mm)	Flywheel	Certificate
Engine model		HP	KW	Speed	HP	KW	*Cylinder-BoreStroke**	Disp (L)	Weight (kg)	Dimension (LWH mm)	Flywheel	Certificate
8CL	YC8CL1600L-C20	1600	1176	1000	1760	1294	8---200*290	72.88	6880	3120×1314×1993	SAE18	CCS, IMO
	YC8CL1500L-C20	1500	1103		1650	1213
	YC8CL1400L-C20	1400	1029		1540	1131
6CL	YC6CL1200L-C20	1200	882	1000	1320	970	6---200*290	54.6	5380	2900×1329×2574
	YC6CL1135L-C20	1135	835		1250	918
	YC6CL1035L-C20	1035	760		1140	836
	YC6CL960L-C20	960	706		1060	776
	YC6CL920L-C20	920	680	900	1020	748
	YC6CL770L-C20	775	570	750	855	627
	YC6CL745L-C20	745	550	720	825	605
6C	YC6C960L-C20	960	706	1350	1060	776	6---200*210	39.58	4700	2873×1342×2367	SAE18	CCS, IMO
	YC6C925L-C20	925	680		1018	748
	YC6C865L-C20	865	636		955	700
	YC6C820L-C20	820	603	1200	900	663
	YC6C730L-C20	730	536		800	590
	YC6C670L-C20	670	492		740	541
	YC6C620L-C20	620	455		680	501
	YC6C700L-C20	700	515	1000	770	567
	YC6C650L-C20	650	478		715	526
	YC6C530L-C20	530	390		583	429
	YC6C480L-C20	480	352		528	387
6CD	YC6CD750L-C20	750	551	1350	825	606	6---180*210	32	4200	2425×998×1834	SAE18	CCS, IMO
	YC6CD700L-C20	700	515	1350	770	566
	YC6CD680L-C20	680	500	1200	748	550
	YC6CD600L-C20	600	441	1000	660	485
	YC6CD540L-C20	540	396	1000	594	436
6TD	YC6TD800L-C20	800	588	1800	880	646	6---152*180	19.59	2200	2108×1125×1415	SAE14	CCS,IMO
	YC6TD760L-C20	760	559		836	615
	YC6TD700-C20	700	515		770	566
	YC6TD650L-C20	650	478		715	526
	YC6TD605L-C20	605	445		666	490
	YC6TD600L-C20	600	441	1500	660	485
	YC6TD550L-C20	550	405		605	446
	YC6TD540L-C23	540	396		594	436
	YC6TD520L-C20	520	382		572	420
	YC6TD540L-C20	540	396	1350	594	436
	YC6TD480L-C20	480	352	1200	528	387
	YC6TD435L-C20	435	320	1200	478.5	352
6T	YC6T540C	540	396	1800	594	435.6	6---145*165	16.35	1980	2125×1105×1645	SAE14	CCS,IMO
	YC6T510C	510	375		561	412.5
	YC6T480C	480	352		528	387.2
	YC6T420C	420	309		462	340
	YC6T390C	390	287		429	325
	YC6T450C	450	330	1500	495	363
	YC6T410C	410	300		451	330
	YC6T400C	400	294		440	323.4
	YC6T375C	375	275		412	302.5
	YC6T330C	330	242		363	266.2
	YC6T380C	380	279	1200	418	307.4
	YC6T350C	350	257		385	282.7
	YC6T300C	300	220		330	242
6MJ	YC6MJ550L-C20	550	405	2100	605	445	6---131*145	11.73	1200	1834×1028×1278	SAE14	CCS,IMO
	YC6MJ500L-C20	500	366		550	405
	YC6MJ450L-C20	450	330		495	363
	YC6MJ410L-C20	410	300	1800	451	330
	YC6MJ365L-C20	365	267	1500	402	294

Yuchai Marine Diesel Engine Model List
Engine model		Rated			Max		*Cylinder-BoreStroke**	Disp (L)	Weight (kg)	Dimension (LWH mm)	Flywheel	Certificate
Engine model		HP	KW	Speed	HP	KW	*Cylinder-BoreStroke**	Disp (L)	Weight (kg)	Dimension (LWH mm)	Flywheel	Certificate
6MK	YC6MK280L-C20	280	206	2100	308	227	6---123*145	10.338	1100	1811×1050×1302	SAE14	CCS,IMO
	YC6MK350L-C20	350	257	1800	385	282			1200	1727×1080×1272
	YC6MK320C	320	235	1800	352	258.8			1200	1727×1080×1272
	YC6MK300L-C20	300	219		330	241			1100	1811×1050×1302
	YC6MK240L-C23	240	176		264	194
	YC6MK220Z-C20	220	162		242	178
	YC6MK300C	300	219	1500	330	240.9			1200	1727×1080×1272
	YC6MK280C	280	205	1500	308	226			1200	1727×1080×1272
6A	YC6A220C	220	162	2300	242	178.2	6---108*132	7.255	770	14169211092	SAE11.5	CCS, IMO
	YC6A195C	195	145	2300	215	159.5
	YC6A190C	190	140	1800	209	154
	YC6A170C	170	125	1500	187	137.5
	YC6108ZLCB	150	112	1500	165	123.2
6B	YC6B165C	165	120	2300	182	132	6---108*125	6.871	750	1414×857×1055	SAE11.5	CCS
	YC6108ZCA	140	103	2300	154	113.3			720	1239×820×1198
	YC6108CA1	112	82	2000	125	90			700	1300×735×1025
	YC6B165L-C20	165	120	1800	182	132			750	1414×857×1055
	YC6B150C	150	110		165	121			750	1414×857×1055
	YC6B100-C20	100	74		110	81.4			700	1300×735×1025
	YC6108ZLCA	122	90	1500	134	99			750	1414×857×1055
	YC6108ZC	109	80		120	88			720	1239×820×1198
	YC6108CA	86	63		95	69.3			700	1300×735×1025
6J	YC6105CA1	90	66	2000	99	72.6	6---105*125	6.494	700	1300×735×1025	SAE11.5	CCS
6J	YC6105CA	72	53	1500	79	58.3	6---105*125	6.494	700	1300×735×1025	SAE11.5	CCS
4D	YC4D120Z-C20	120	90	3000	132	99	4---108*115	4.214	390	1131×746×962	SAE11.5	CCS
	YC4D100Z-C20	100	75	2400	110	82.5			390	1131×746×962
	YC4D80-C20	80	58	2400	88	63.8			490	1030×695×825
	YC4D75C	75	55	1800	82.5	60.5			390	1131×746×962
	YC4D55C	55	40	1800	60	44			370	986×730×948
	YC4108ZC	68	50	1500	75	55			390	1131×746×962
	YC4108C	54	40	1500	59.4	44			370	986×730×948
4F	YC4FA165L-C20	165	120	3300	181	132	4---96*103	2.982	380	828×663×724	SAE10	CCS
	YC4FA150L-C20	150	110	3100	165	120
	YC4FA130L-C20	130	95	3100	143	105
	YC4F115-C31	115	85	2800	126	93.5	4---92*100	2.66	420	895×646×731	SAE10	CCS
