Product Description

Strong Power: Hight efficient Turbocharger & inter-cooled technology, higher power per liter, larger torque, sufficient power reserve, which is applicable to various working conditions with high operation efficiency.
Fuel Economy: Four-valve per cylinder technology ensure more intense combustion, low fuel consumption, flat performance curve and wider economy working area.
Easy Maintenance: Modular design, wet cylinder liner, one cylinder one cover, side window on cylinder block, easy installation and maintenance.
Compact Structure: Adoption of arc structure for cylinder block, ensure high strength and light on weight, compact small cylinder center distance, ensure whole size smaller and more compact.
Safe and Reliable: High strength alloy cast iron body and monolithic forged steel crankshaft, special structure to prevent cylinder gasket from destroying ensure safety operation, fresh water cooled intercooler, longer life and more reliable.

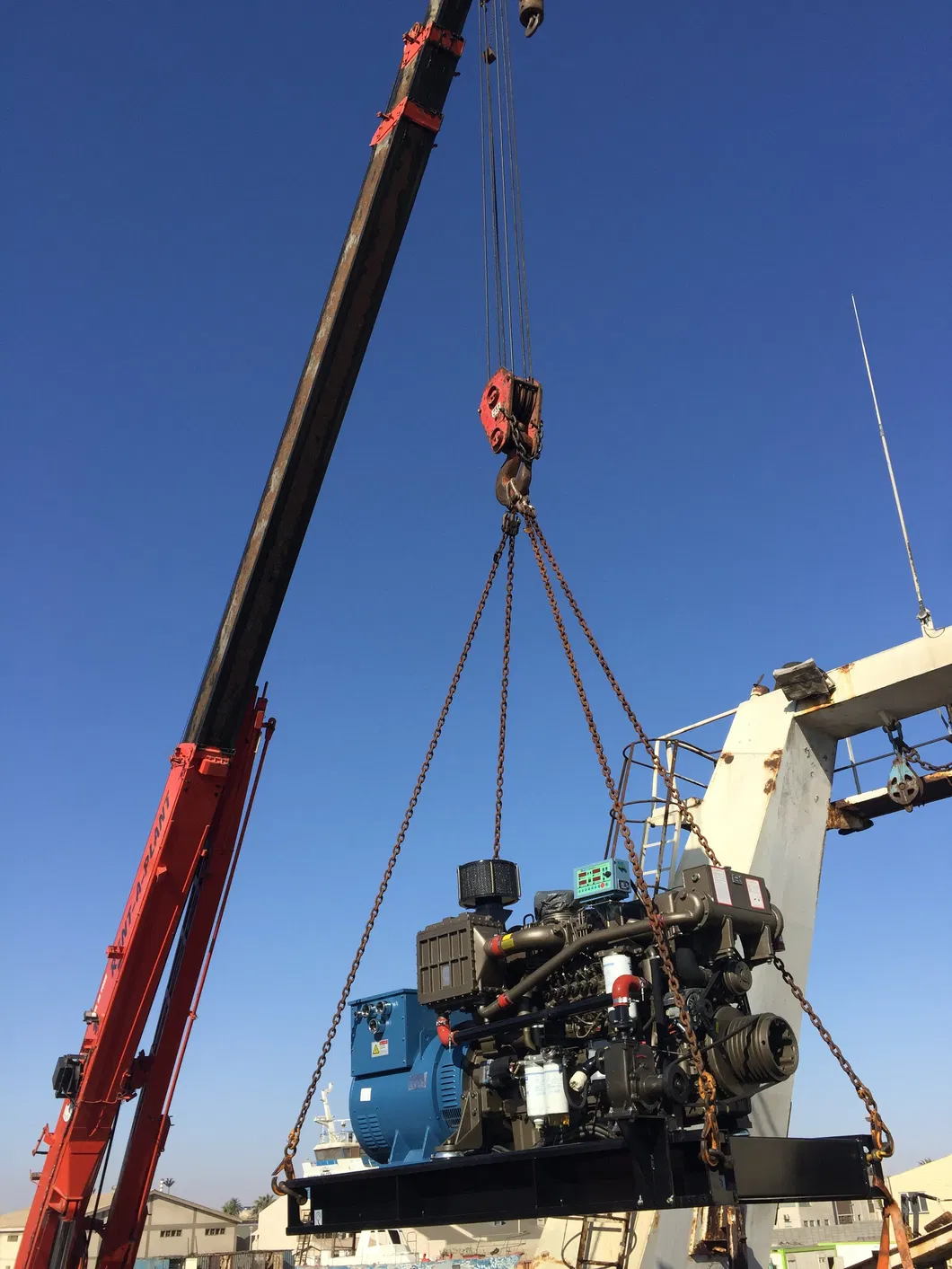

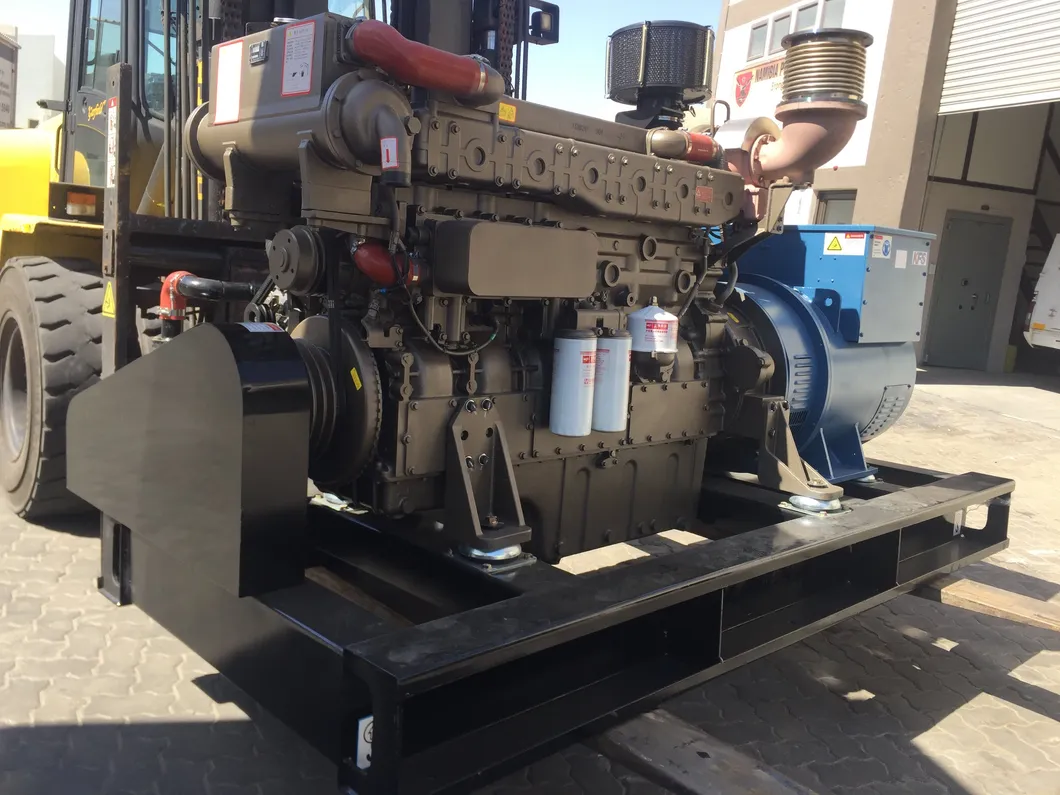

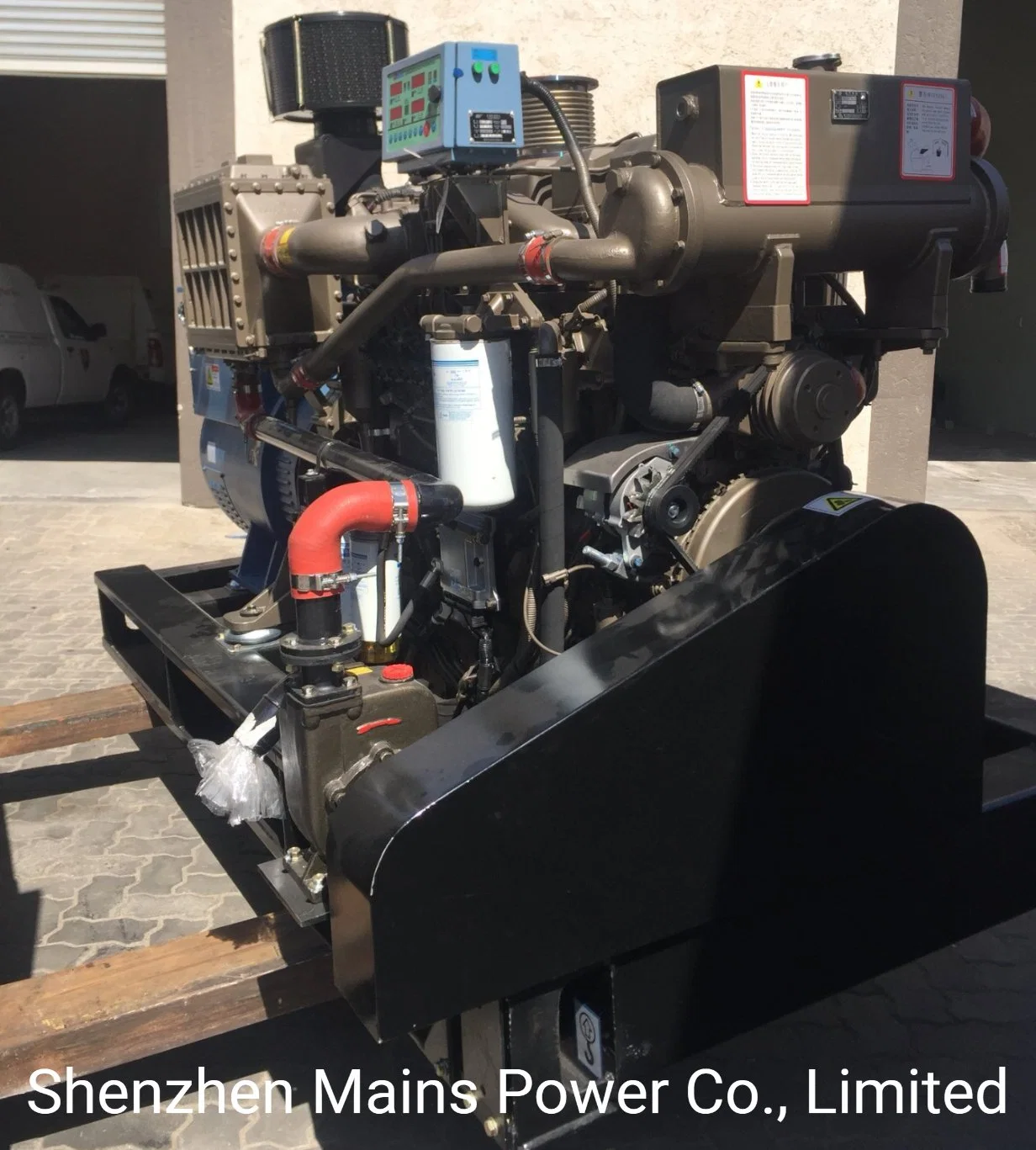

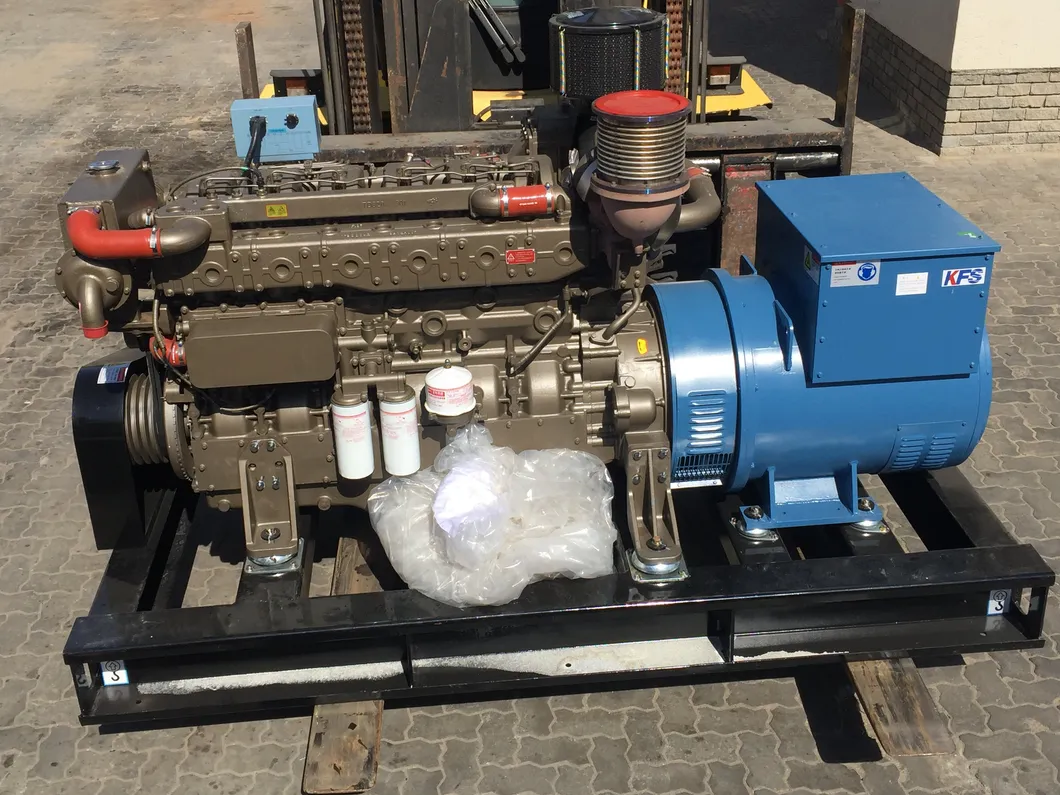

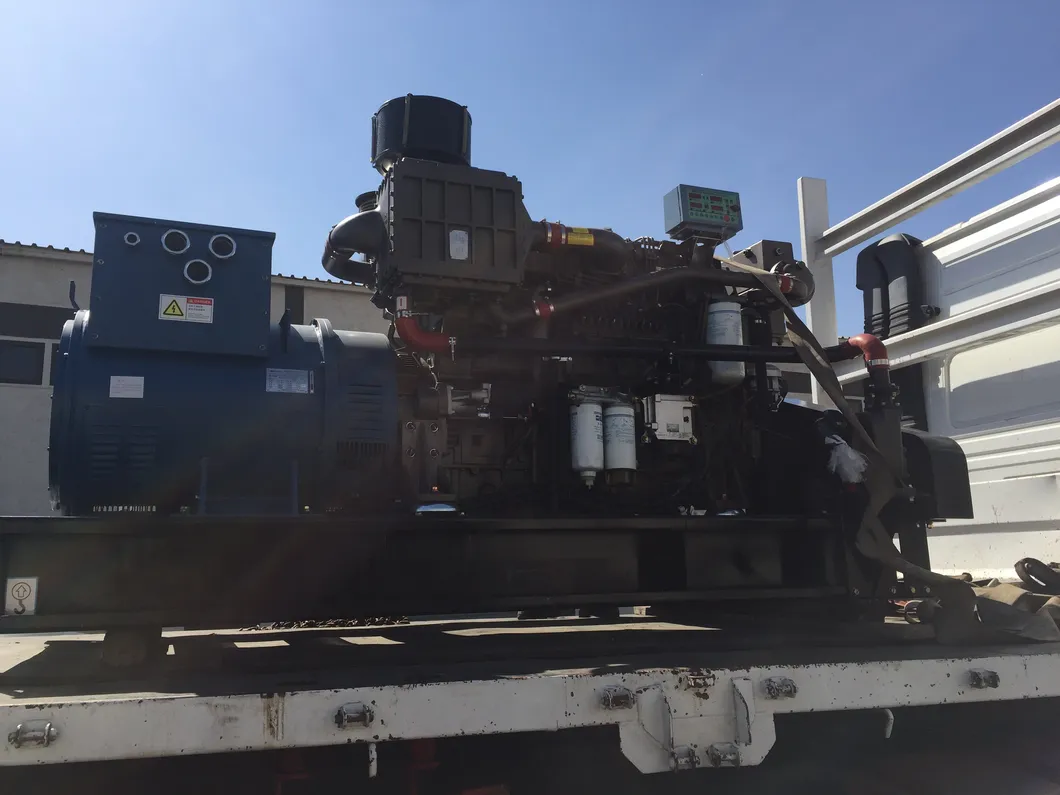

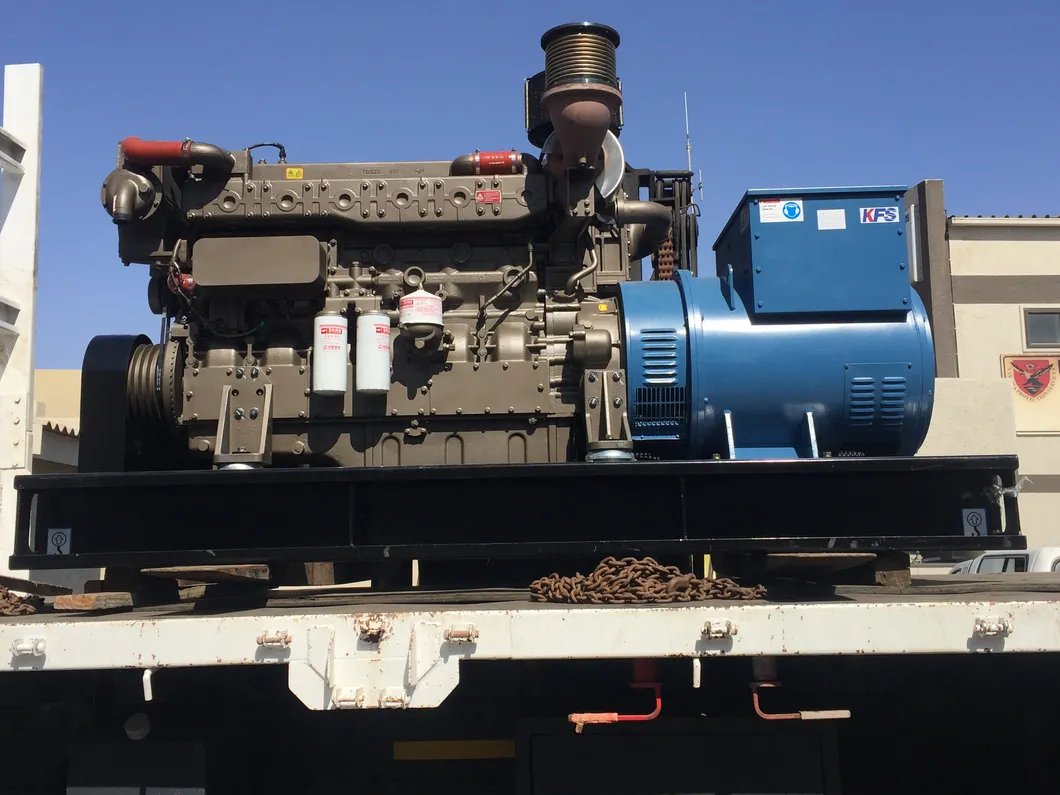

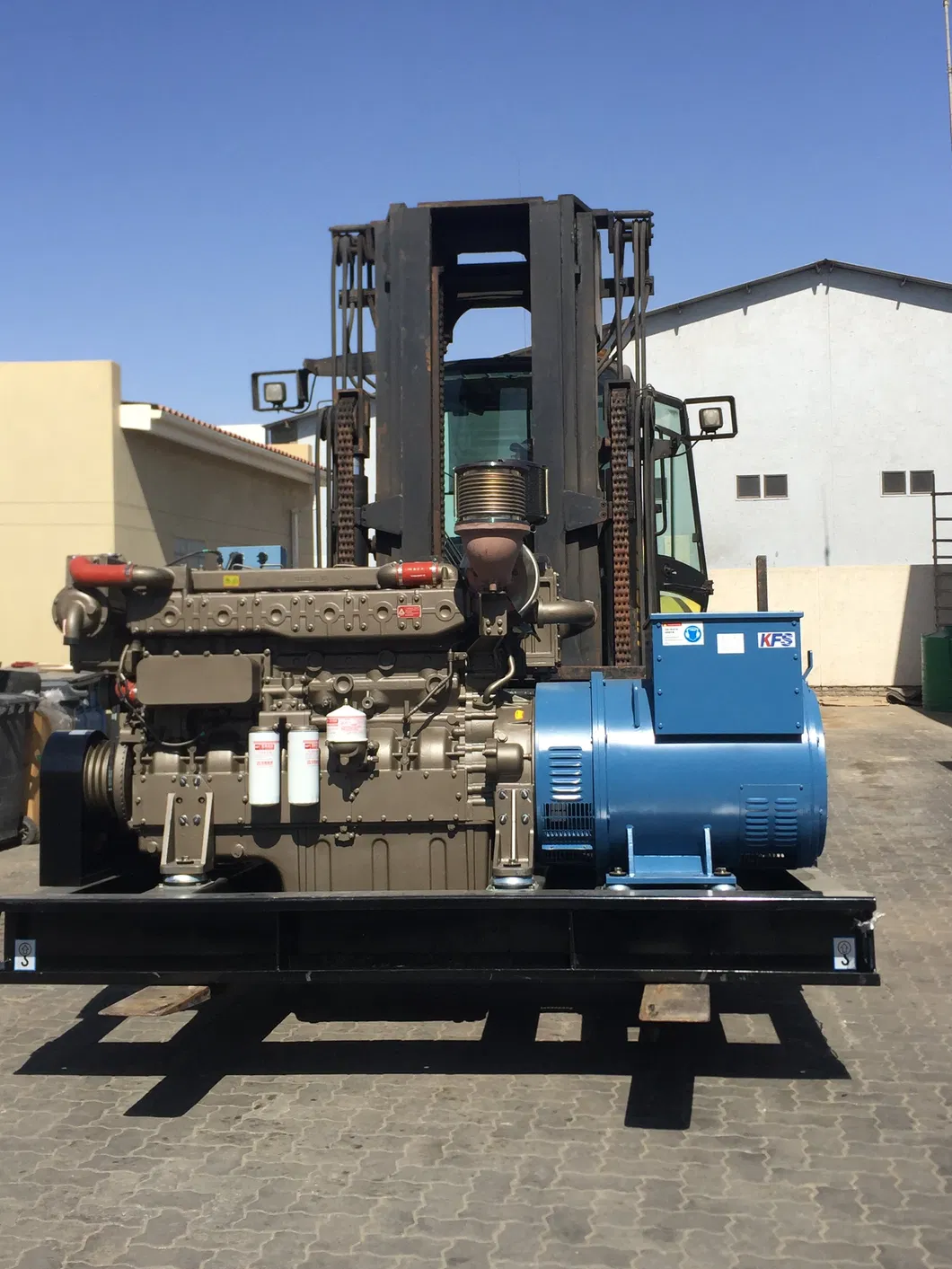

Genset model: CCFJ400J-W
Continuous power: 400KW/500KVA
Max Power: 440KW/550KVA
Rated speed: 1500RPM
Voltage: 230/400V
Size: 3600*1600*2100mm

Engine Model: YC6TD600L-C20
Continuous power: 441KW
Max power: 481KW
Configuration: Vertical, in line, 6 cylinder, water-cooled, 4 stroke
Bore*Stroke: 152*180mm
Displacement: 19.59L
Compression ratio: 14.5 : 1
Fuel consumption: 195g/kw.h
Oil consumption: 0.5 g/kw.h
Rotation: Anticlockwise ( facing flywheel)

Alternator: Leroy Somer, Sanbo (ABB technology)
Brushless AC, self-excited, IP23, 230/400V, Insulation H

Model	Rated power		Engine Model	Engine Power	Alternator	Certificate
CCFJ24J-W	24 KW	30 KVA	YC4108C	40 KW	LSA M43.2 S1	CCS
CCFJ32J-W	32 KW	40 KVA	YC4108C	40 KW	LSA M43.2 S15
CCFJ40J-W	40 KW	50 KVA	YC4108ZC	50 KW	LSA M43.2 M45
CCFJ45J-W	45 KW	56 KVA	YC4108ZC	50 KW	LSA M 43.2 L65
CCFJ50J-W	50 KW	63 KVA	YC6108CA	63 KW	LSA M43.2 L65
CCFJ72J-W	72 KW	90 KVA	YC6108ZC	80 KW	LSA M44.2 VS3
CCFJ80J-W	80 KW	100 KVA	YC6108ZLCA	90 KW	LSA M 44.2 VS45
CCFJ100J-W	100 KW	125 KVA	YC6B155L-C21	120 KW	LSA M 44.2 S75
CCFJ112J-W	112 KW	140 KVA	YC6A170C	125 KW	LSA M44.2M95
CCFJ120J-W	120 KW	150 KVA	YC6A200L-C21	145 KW	LSA M44.2 L12
CCFJ150J-W	150 KW	188 KVA	YC6MK240L-C22	176 KW	LSA M 46.2 M5
CCFJ172J-W	172 KW	215 KVA	YC6MK260L-C22	192 KW	LSA M46.2 L6
CCFJ200J-W	200KW	250KVA	YC6MK300L-C22	220 KW	LSA M 46.2 L9
CCFJ220J-W	220KW	275 KVA	YC6MK330C	240 KW	LSA M 46.2 VL12
CCFJ260J-W	260 KW	325 KVA	YC6MJ400L-C22	295 KW	LSA M 47.2 VS2
CCFJ300J-W	300 KW	375 KVA	YC6T450C	330 KW	LSA M 47.2 S4	CCS, IMO
CCFJ324J-W	324 KW	405 KVA	YC6T490C	360 KW	LSA M 47.2 S5
CCFJ400J-W	400 KW	500 KVA	YC6TD600L-C20	441 KW	LSA M 47.2 L9
CCFJ440J-W	440 KW	550 KVA	YC6TD655L-C20	480 KW	LSA M 49.1 S4
CCFJ480J-W	480 KW	600 KVA	YC6C700L-C20	515 KW	LSA M 47.2 S4
CCFJ550J-W	550 KW	687 KVA	YC6C820L-C21	600 KW	LSA M 49.1 M75
CCFJ640J-W	640 KW	800 KVA	YC6C980L-C20	720 KW	LSA M 49.1 L9
CCFJ700J-W	700 KW	875 KVA	YC6CL1035L-C20	760 KW	LSA M 50.2 S4
CCFJ760J-W	760 KW	950 KVA	YC6CL1135L-C20	835 KW	LSA M 50.2 S4
