Square Rubber Fenders Square Fender Square Hole
Square Rubber FenderFeatureThe kind of fender is applicable for various docks, quays and ships.Type Specification(mm) Performance L=1000BΦL Rated Deflection(%) High Reaction Force C0 Standard Type Ro Tolerance% Reaction Force Energy Absorption Reaction Force Energy Absorption150&am......
Send Inquiry
Product Description

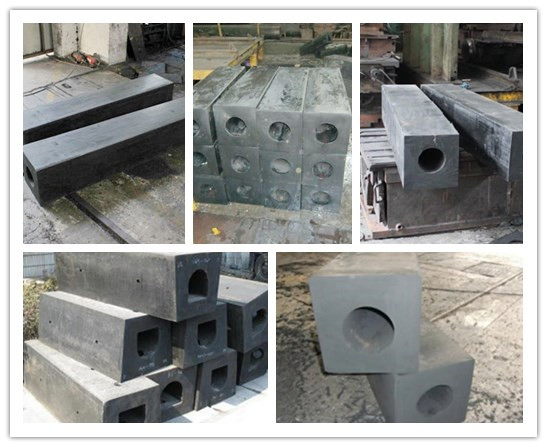

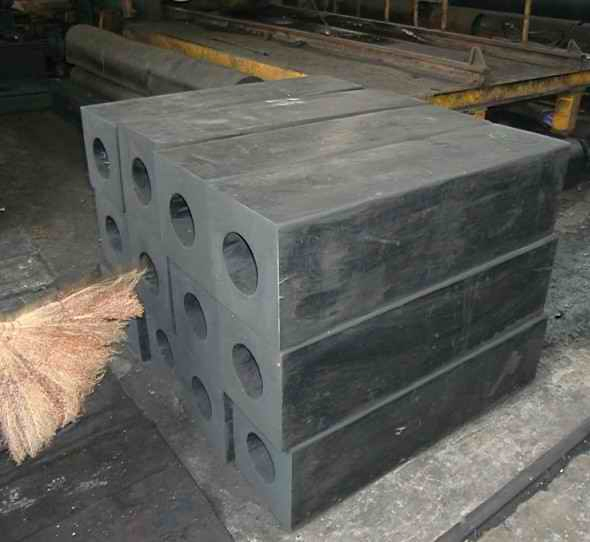

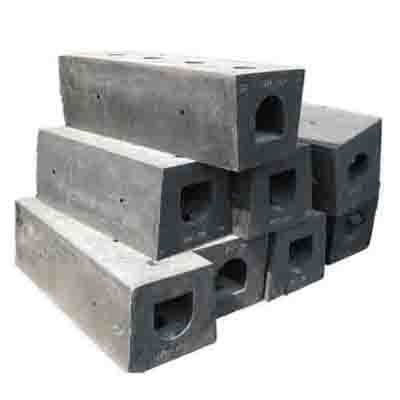

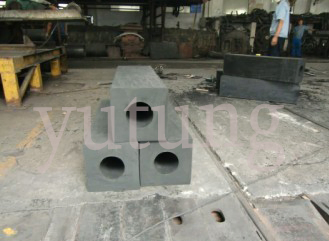

Square Rubber Fender
Feature
The kind of fender is applicable for various docks, quays and ships.
Feature
The kind of fender is applicable for various docks, quays and ships.
| Type | Specification(mm) | Performance L=1000 | |||||||
| B | Φ | L | Rated Deflection(%) | High Reaction Force C0 | Standard Type Ro | Tolerance% | |||
| Reaction Force | Energy Absorption | Reaction Force | Energy Absorption | ||||||
| 150×75 | 150 | 75 | 500-2500 | 40 | 781.0 | 16.0 | 648.0 | 13.0 | ±10 |
| 200×100 | 200 | 100 | 1059.0 | 27.4 | 876.0 | 22.0 | |||
| 250×125 | 250 | 125 | 1320.0 | 43.2 | 1094.0 | 35.0 | |||
| 300×150 | 300 | 150 | 1581.0 | 62.1 | 1308.9 | 51.0 | |||
| 400×200 | 400 | 200 | 2101.0 | 109.5 | 1739.0 | 90.0 | |||
| 500×250 | 500 | 250 | 2621.8 | 169.5 | 2170.4 | 139.3 | |||
