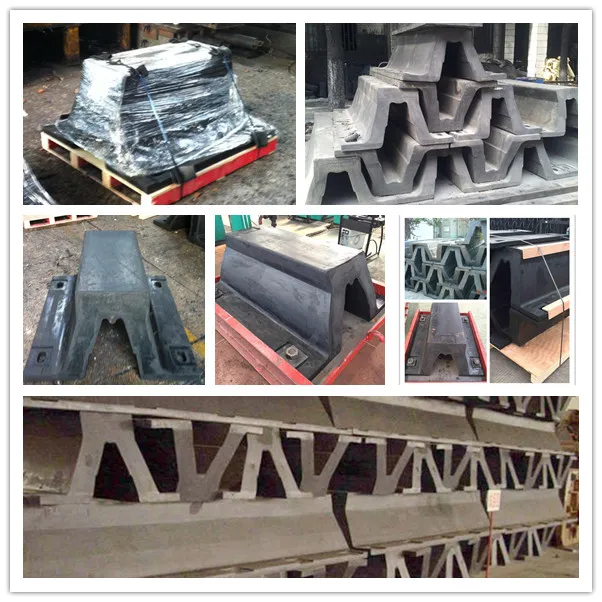

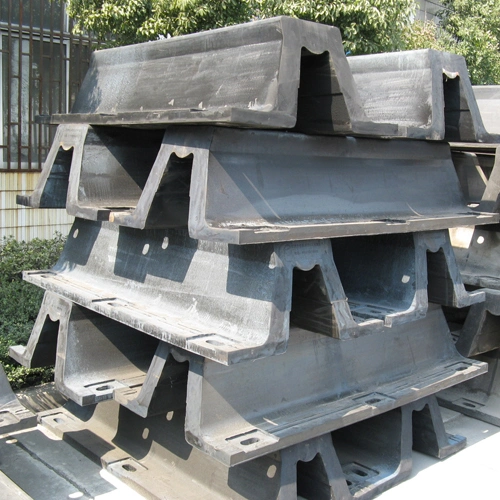

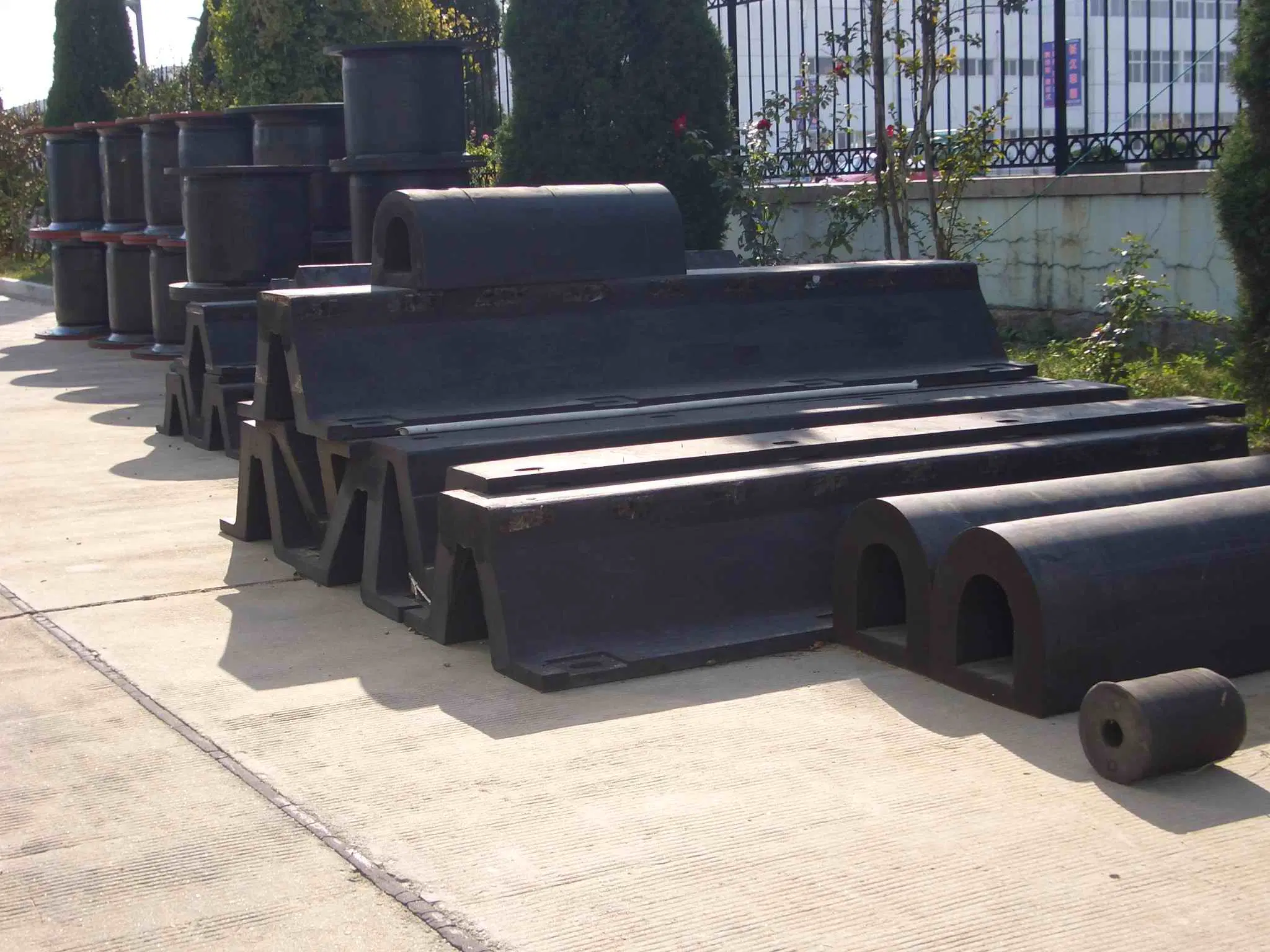

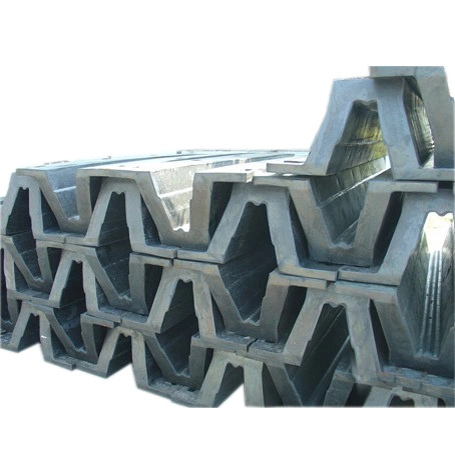

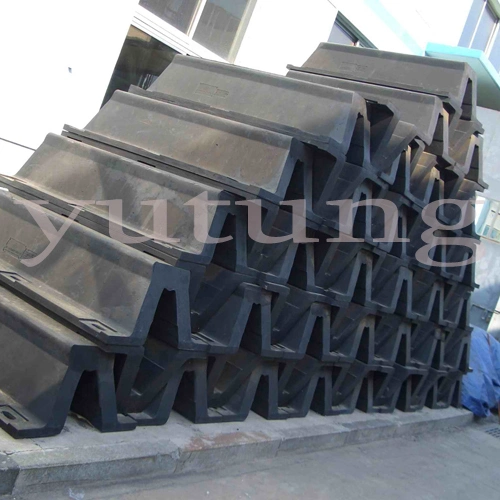

Product Description

1. Moderate reaction force and high energy;
2. Convenient installation and firm structure;
3. The kind of fender is applicable to all kinds of docks, quays and ships.

Type	Specification
Type	H	L	L1	B	B1	B2	B3	c	d	e	f	h	p	n
A300× 1000	300	1000	1150	197	600	490	216	140	37	105	140	45	870	2
A300× 1500	300	1500	1650	197	600	490	216	140	37	105	140	45	685	3
A300× 2000	300	2000	2150	197	600	490	216	137.5	37	105	140	45	625	4
A400× 1000	400	1000	1200	262	800	670	350	150	43	120	165	60	900	2
A400× 1500	400	1500	1700	262	800	670	350	150	43	120	165	60	700	3
A400× 2000	400	2000	2200	262	800	670	350	147.5	43	120	165	60	635	4
A500× 1000	500	1000	1250	328	1000	840	360	160	47	140	180	75	930	2
A500× 1500	500	1500	1750	328	1000	840	360	160	47	140	180	75	715	3
A500× 2000	500	2000	2250	328	1000	840	360	157.5	47	140	180	75	645	4
A600× 1000	600	1000	1300	393	1200	1010	432	170	50	160	195	90	960	2
A600× 1500	600	1500	1800	393	1200	1010	432	170	50	160	195	90	730	3
A600× 2000	600	2000	2300	393	1200	1010	432	167.5	50	160	195	90	655	4
A800× 1000	800	1000	1400	524	1600	1340	576	180	68	260	270	120	1040	2
A800× 1500	800	1500	1900	524	1600	1340	576	180	68	260	270	120	770	3
A800× 2000	800	2000	2400	524	1600	1340	576	180	68	260	270	120	680	4
