Product Description

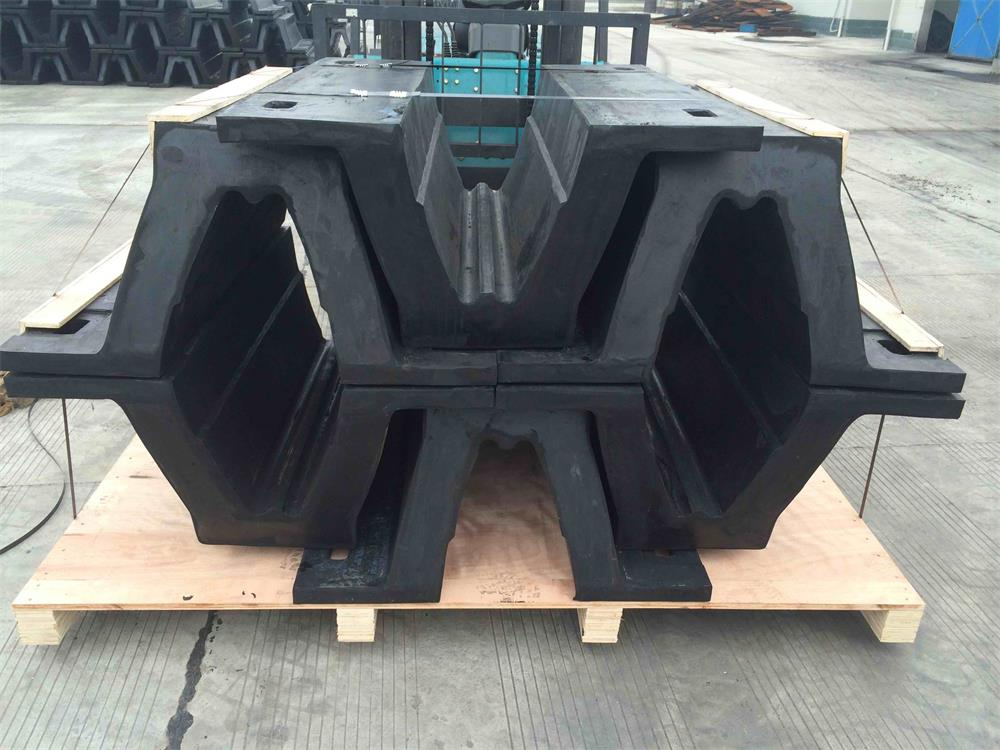

Super Arch Type(Type SA) Rubber Fender

1. High energy absorption and low reaction force.
2. Reasonable Structure and long useful life.
3. It can be installed firmly and replaced easily.

Type	Specification
Type	H	L	L1	B	B1	B2	c	d	e	f	h	n× Q	s
SA300× 1000	300	1000	1150	225	600	490	140	37	105	140	45	1× 870	195
SA300× 1500	300	1500	1650	225	600	490	140	35	105	140	33	2× 685	195
SA300× 2000	300	2000	2150	225	600	490	137.5	35	105	140	33	3× 625	195
SA400× 2500	300	2500	2650	225	600	490	140	35	105	140	33	3× 790	195
SA400× 3000	300	3000	3150	225	600	490	145	35	105	140	33	4× 715	195
SA400× 1000	400	1000	1200	300	800	670	150	41	120	165	40	1× 900	260
SA500× 1500	400	1500	1700	300	800	670	150	41	120	165	40	2× 700	260
SA500× 2000	400	2000	2200	300	800	670	147.5	41	120	165	40	3× 635	260
SA500× 2500	400	2500	2700	300	800	670	150	41	120	165	40	3× 800	260
SA600× 3000	400	3000	3200	300	800	670	150	41	120	165	40	4× 725	260
SA600× 1000	500	1000	1250	375	1000	840	160	47	140	180	45	1× 930	325
SA600× 1500	500	1500	1750	375	1000	840	160	47	140	180	45	2× 715	325
SA800× 2000	500	2000	2250	375	1000	840	157.5	47	140	180	45	3× 645	325
SA800× 2500	500	2500	2750	375	1000	840	160	47	140	180	45	3× 810	325
SA500× 3000	500	3000	3250	375	1000	840	165	47	140	180	45	4× 730	325
SA600× 1000	600	1000	1300	450	1200	1010	170	50	160	195	54	1× 960	390
SA600× 1500	600	1500	1800	450	1200	1010	170	50	160	195	54	2× 730	390
SA600× 2000	600	2000	2300	450	1200	1010	167.5	50	160	195	54	3× 655	390
SA600× 2500	600	2500	2800	450	1200	1010	170	50	160	195	54	3× 820	390
SA600× 3000	600	3000	330	450	1200	1010	170	50	160	195	54	4× 740	390
SA800× 1000	800	1000	1400	600	1600	1340	180	68	260	270	72	1× 1040	520
SA800× 1500	800	1500	1900	600	1600	1340	180	68	260	270	72	2× 770	520
SA800× 2000	800	2000	2400	600	1600	1340	180	68	260	270	72	3× 680	520
SA800× 2500	800	2500	2900	600	1600	1340	182.5	68	260	270	72	3× 845	520
SA1000× 1000	1000	1000	1500	750	2000	1680	200	68	300	290	90	1× 1100	650
SA1000× 1500	1000	1500	2000	750	2000	1680	200	68	300	290	90	2× 800	650
SA1000× 2000	1000	2000	2500	750	2000	1680	200	68	300	290	90	3× 700	650
